How To Wire a Hayward AquaRite on 115V

This guide provides a step-by-step procedure for wiring a Hayward Aqua Rite on 115V. Note: This guide is intended to give you a visual reference to supplement the Hayward owner's manual, not replace it. Make sure you read and understand your owner's manual before installing your unit.

Step 1

Step 1 image

TURN OFF POWER at the breaker.

Step 2

Step 2 image

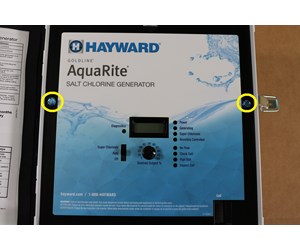

Open the Aqua Rite control box and remove the two screws that secure the blue cover panel.

Step 3

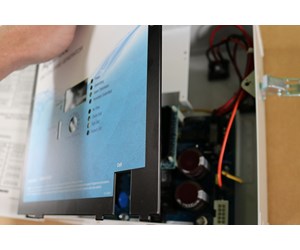

Step 3 image

Remove the blue cover panel.

Step 4

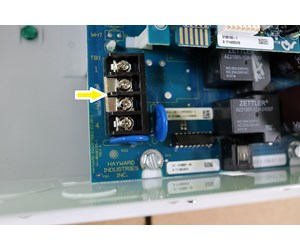

Step 4 image

Locate the metal jumpers on terminals 2 and 3 on the main circuit board. With a phillips head screwdriver, loosen the screws on terminals 2 and 3. Slide the jumpers out. One jumper will be stacked on top of the other.

Step 5

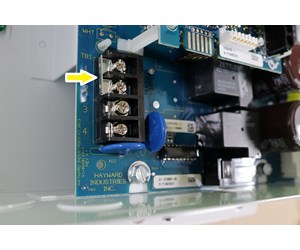

Step 5 image

Loosen the screw on terminal one and slide one jumper onto terminals 1 and 2. Tighten the screw on terminal 2 and leave the terminal 1 screw loose.

Step 6

Loosen the screw on terminal 4 and slide the other jumper onto terminals 3 and 4. Tighten the screw on terminal 3 and leave the terminal 4 screw loose.

Step 7

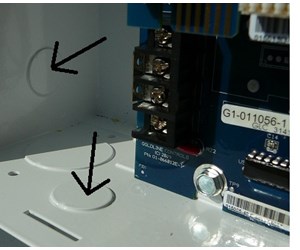

Step 7 image

Remove one of the knockouts located near the wiring connections of the Aqua Rite control box.

Step 8

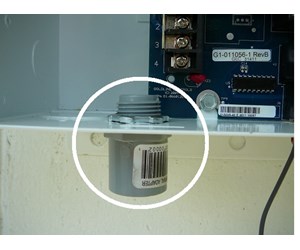

Step 8 image

Thread a 1/2" mpt terminal adapter into the knockout of the control box.

Step 9

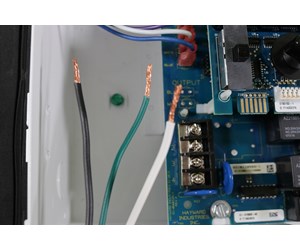

Step 9 image

Feed the cables through the terminal adapter and into the Aqua Rite control box. There should be one hot line (black), one neutral line (white), and a ground line (green).

Step 10

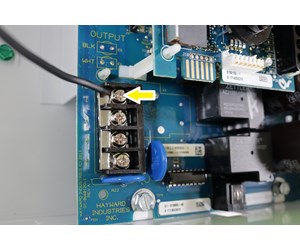

Step 10 image

Connect the black (hot) line to terminal 1 and tighten the screw.

Step 11

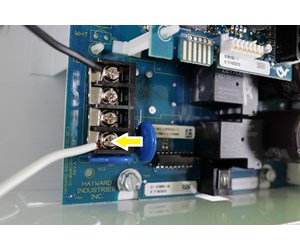

Step 11 image

Connect the white (neutral) line to terminal 4 and tighten the screw.

Step 12

Step 12 image

Connect the green (ground) line to the green screw and tighten it.

Step 13

Step 13 image

Move the blue panel back into place and tighten screws.

Step 14

The last step will involve bonding the AquaRite box. Using an 8AWG conductor, connect the grounding lug on the underside of the AquaRite to an appropriate earth contact. Failure to adequately bond your power unit can lead to severe electrical shocks. For more information about bonding, check out our guide titled "How to Add a Line to the Pool Bonding Wire".

Step 15

Turn power back on at the breaker. Your AquaRite should now power up on 115v.
