How To Replace an Aqua Rite Main PCB

Things You’ll Need

• Main AquaRite PCB Board - O.E.M
• Main AquaRite PCB Board - After Market

Step 1

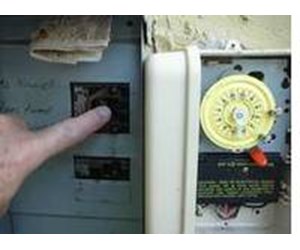

TURN OFF THE POWER TO THE TIMER BOX. There should be a circuit breaker before the timer box where the power can be turned off.

Step 2

Unlatch the lock and open the door to the Hayward Aqua Rite control box.

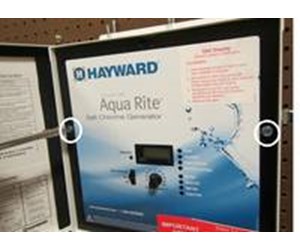

Step 3

Using a 5/16" socket, remove the 2 screws that secure the cover panel to the box.

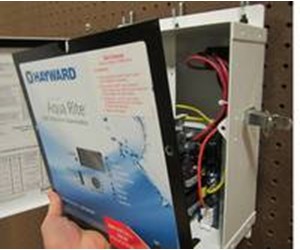

Step 4

Pull the cover panel out of the Aqua Rite control box.

Click here to view the Hayward Aquarite parts.

Step 5

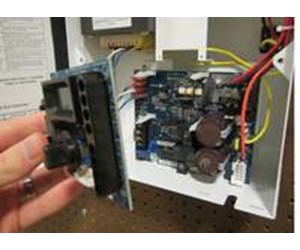

Pull the Display PCB off of the Main PCB. The Display PCB will simply lift right off of the GLX-PCB-RITE.

Click here to view the Aquarite display.

Step 6

Remove the gray, violet, white, blue, orange, and yellow cables from the Hayward Aqua Rite Main PCB. We recommend using a pair of needle nose pliers.

Step 7

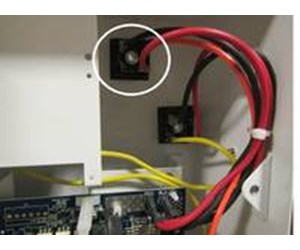

Remove the red and black cables from the black terminal located in the top right corner of the box. Note: The new board will come with a new black and red cable.

Step 8

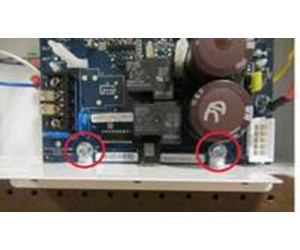

With a 5/16" socket, loosen the two screws that hold the Main PCB in place. They do not need to be completely removed.

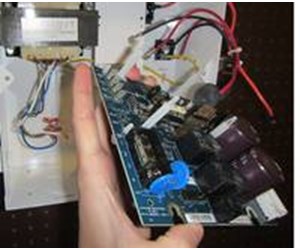

Step 9

Slide the old Hayward Main PCB out of the control box.

Click here to view the Aquarite Main PCB.

Step 10

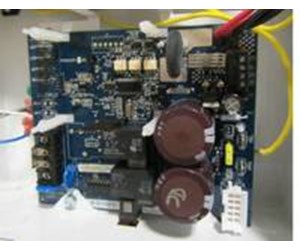

Place the new Main PCB (GLX-PCB-RITE) into the control box.

Step 11

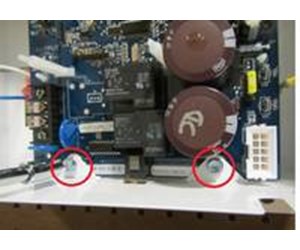

Tighten the two screws at the bottom of the GLX-PCB-RITE with a 5/16" socket.

Step 12

Attach the new red and black cable from the board to the black terminal located in the top right corner of the box. Note: The red cable will be connected to the lower right terminal connection and the black cable will connect to the upper left terminal connection.

Step 13

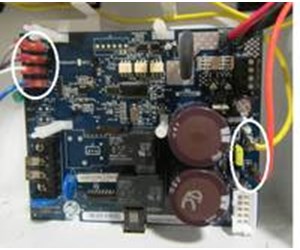

Attach the gray, violet, white, blue, orange, and yellow cables to the Hayward GLX-PCB-RITE board. The terminals on the board are labeled with a particular color. Each colored cable should be matched to the color indicated on the board.

Click here to view the Hayward Aquarite parts.

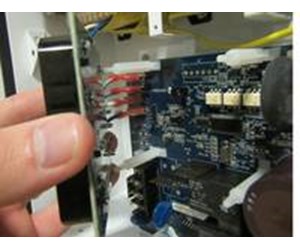

Step 14

Press the Display Board back onto the new Hayward Main PCB. Make sure the long pins from the Main PCB match up with the holes on the Display PCB.

Click here to view the Aquarite display.

Step 15

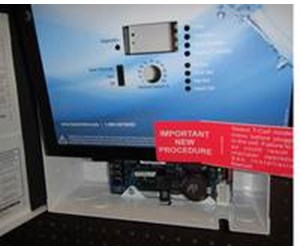

Place the control box cover into the box.

Step 16

Tighten the two cover screws with a 5/16" socket.

Step 17

Turn on the power at the circuit breaker.

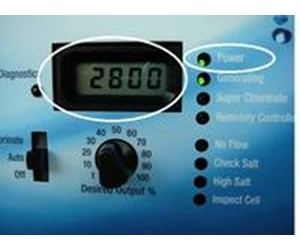

Step 18

The "Power" light and the display should be illuminated if everything is operating correctly.

Click here to view the Hayward Aquarite parts.

Step 19

Close the door to the Hayward Aqua Rite and continue to enjoy the benefits of your salt water pool.
