How To Change the Displayed Cell Size on an Aqua Rite SCG

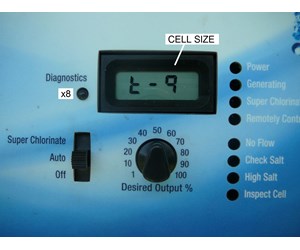

Step 1

Push 8, Cell Size - With the Display showing its default value of "Average Salt Level". Push the Diagnostic Button 8 times to bring up the "Cell Size". It will read one of 4 values; t-3, t-5, t-9, or t-15. In this case the display is showing "t-9". The installed cell size is t-3. So we need to change this displayed value from t-9 to t-3. To make this change we will bump the value from t-9 to t-15 to t-3 as follows.


Click Here to Find Your Replacement Aquarite Salt Cell

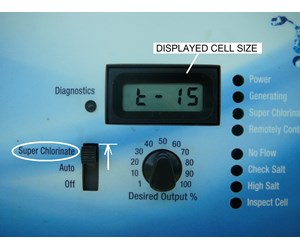

Step 2

SLIDE MAIN SWITCH UP - Slide the Main Switch from Auto to Super Chlorinate. The display will show a cell size of "t-15".

Click Here to Find Your Hayward Aquarite Replacement Parts (Main PCB, Display PCB, Transformers & More)

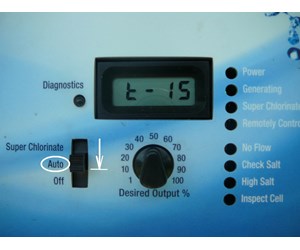

Step 3

SLIDE MAIN SWITCH DOWN - Slide the Main Switch back down to "Auto" to save the new cell size value.

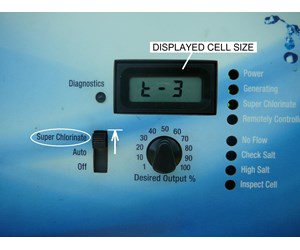

Step 4

SLIDE MAIN SWITCH UP - Slide the Main Switch from Auto to Super Chlorinate. The display will show a cell size of "t-3".

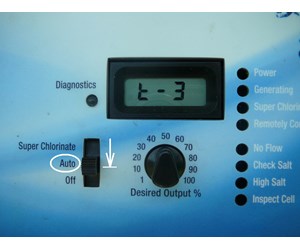

Step 5

SLIDE MAIN SWITCH DOWN - Slide the Main Switch back down to "Auto" to save the new size change of t-3. So now the installed cell size matches the displayed cell size.
