How a Multiport Valve Operates

Step 1

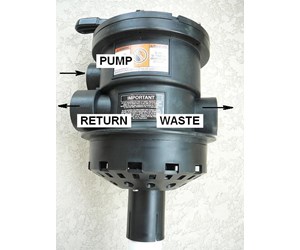

There are five ports into and out of a typical multiport valve. Three are shown in this picture. The top left port, labeled "PUMP", brings unfiltered water in from the pump. The middle left port, labeled "RETURN", sends filtered water back to the pool. The middle right port, labeled "WASTE", sends water to an external drain hose.

Click Here to View Sta-Rite / Swimquip Multiport Valve Parts

Click Here to View Pentair / Praher Multiport Valve Parts

Click Here to View Pentair / Pac-Fab Multiport Valve Parts

Click Here to View Hayward Multiport Valve Parts

Click Here to View All Multiport Valve Parts Listings (including Jacuzzi, Waterway, Jandy & More)

Step 2

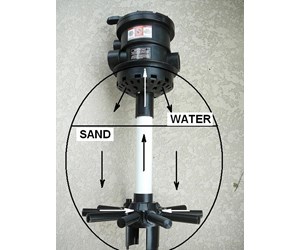

The other two ports control flow though the filter. This picture shows the valve as it is connected to the inside piping of the filter. At the bottom of the valve, a pipe port connects to the collection tubes (laterals) on the bottom of the filter. The area around the pipe on the bottom side of the valve directs water to the top of the filter. This picture shows water flow for a "FILTER" setting. Water will flow in the opposite direction with a "BACKWASH" setting. The next series of steps explains how each of the valve setting directs water though these ports. CAUTION. When selecting a valve setting, make sure that the pump has been TURNED OFF and always depress the handle before turning.

Step 3

FILTER. This is the normal setting for filtering your pool water and for regular vacuuming. Water from the pool is pumped into the "PUMP" port to the top of the filter. Contaminates are removed as the water makes it way to the bottom to be pushed back up through a central pipe to the "RETURN" port and back to the pool.

Step 4

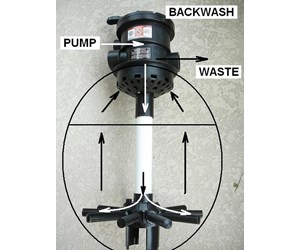

BACKWASH. After a period of time, the contaminates start to clog the sand to the point where water flow is significantly diminished and the pressure gauge rises 8 to 10 psi above normal operation readings. To clean out the contaminates, you have to backwash the sand. In the backwash setting water flow is reversed though the filter. Water comes from the "PUMP" port down the filter through the central pipe, then back up through the sand to flow out the top exit of the filter and out the "WASTE" port to an external drain. As the water flows up though the sand, the sand is lifted about 7 inches above its normal height releasing the trapped contaminates to be purged out in the waste water.

Step 5

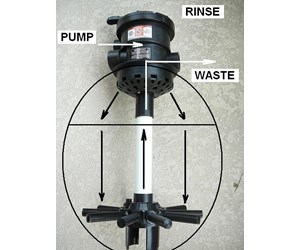

RINSE. After backwashing, the sand is loose and needs to be reset. Also any dirty water from backwashing has to be rinsed out of the filter to waste to prevent it from returning to the pool. With the valve in rinse mode, water is directed from the "PUMP" port to the top of the tank to compress the sand. As in the filter setting, the water flows down though the sand and back up though the central pipe but instead of going out the "RETURN" port to the pool, the water is diverted out the "WASTE" port.

Click Here to View All Multiport Valve Parts Listings (including Jacuzzi, Waterway, Jandy & More)

Step 6

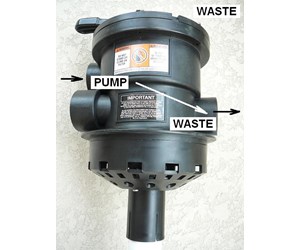

WASTE. This setting is used to bypass the filter when you want to vacuum the pool after an algae treatment or to lower the pool level. The water enters the valve though the "PUMP" port and exits though the "WASTE" port.

Step 7

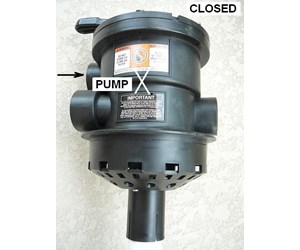

CLOSED. This setting is used for shutting off all flow to the filter and pool. Water flow is stopped at the "PUMP" port.

Step 8

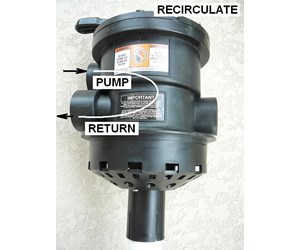

RECIRCULATE. This setting is used to bypass the filter during certain pool cleanups and chemical treatments when you don't want the water contaminating the sand. Water enters the valve through the "PUMP" port and exits back to the pool through the "RETURN" port.

Step 9

WINTER. Use this setting when you are closing down the pool for the winter. This will allow water to drain from the valve.
