One of the most common problems pool owners run across when maintaining and serving their swimming pool is a leaking backwash valve. The backwash valve is the valve which is mounted on either the top or side of your filter tank and are specifically used clean sand filters or DE filters. One of the most popular filter manufactures in the world is Hayward Pool Products who also makes quite a few backwash valves. Based on the Hayward valve you have the fix varies slightly. This guide will help you determine which Hayward valve you have and then determine the proper fix for your situation.
Things You’ll Need
Step 1

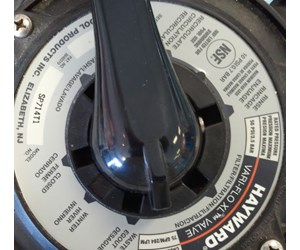

The first step you will take when determining how to fix your valve will be to obtain the model # of your valve. Typically this is located on the label on the top of the valve, normally there is a box named model no. and the valve # will be located in this box. The majority of Hayward valve part #’s start with this prefix SP7
Click Here to View Hayward Multiport Valve Part Diagrams
Click Here to View All Multiport Valve Part Diagrams
Step 2
If you are having trouble finding the valve # on the label then you may be able to find a SP or SPX part # molded into the plastic of the body of the valve or the handle. Feel free to post a comment at the bottom of this guide with as much information about your filter as possible and we should be able to help identify your valve. Helpful information for us would be any part #’s off of the valve, the filter manufacture name, the filter model name, filter model #, filter square footage, number of positions the valve can be set to, plumbing size going into the valve and filter type (i.e. sand filter or D.E filter). Any or all of this information will help out a lot.
Click Here to View our Spider Gasket EZ Find Chart
Step 3

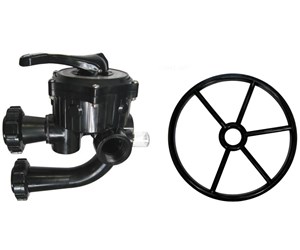

If you have one of the following Hayward valves which is leaking then the appropriate fix would be to replace the spider gasket within the valve. Here is a detailed guide on How to Replace a spider gasket, this guide will walk you through all the steps needed to fix your backwash valve.
The following 1.5" Hayward valves can be fixed by simply replacing the spider gasket. The appropriate spider gasket for the valves below is the SPX0710XD.
SP711-13, SP710XALL, SP7122, SP7121, SPX0710X32, SP0710X62, SP0710XR50
The following 2" Hayward valves can be fixed by simply replacing the spider gasket. The appropriate spider gasket for the valves below is the SPX0715XD with the exception of the SP0740DE which uses the SPX0740D spider gasket.
SP715ALL, SPX715X32, SP0715X62, SP0715XR50, SP071621, SP071620T, SP0740DE
If you have any of the model #'s above then purchase the SPX0710XD or SPX0715XD spider gasket and move on to our How to Replace a spider gasket guide for easy step by step instructions on replacing the gasket.
If you have the SP0714T valve or any other model #'s then move on to step # 4 of this guide.
Step 4

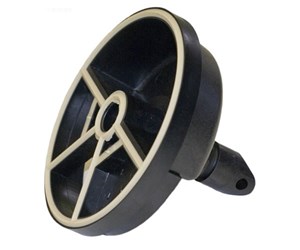

The most common Hayward backwash valve is the SP0714T valve which is used on many of the Hayward top mount sand filters. If you have the SP0714T valve then the spider gasket cannot be replaced as it comes glued into the diverter on the valve. The appropriate fix for a leaking SP0714T valve would be to replace the diverter (part # SPX0714CA) which comes with the spider gasket glued into it. This is an easy enough fix, you would just need to remove the cover and handle assembly from the current valve and swap out with the new diverter.
Click Here to View Hayward's SP714T Valve Parts
Step 5
The last style of Hayward valve is called a slide valve or plunger valve. The two most common model #'s for this valve are the SP0410X602S and the SP0410X502S. If you have either of these model #'s then the appropriate fix would be replace the gaskets within the valve using the following valve tune up kit There are also a few other fixes the Hayward Slide valve which have detailed in the guides below:
How to maintain a Hayward slide valve
How to replace a Hayward slide valve handle & piston assembly
How to replace a Hayward slide valve O-ring
Click Here to View Hayward Multiport Valve Part Diagrams
Click Here to View All Multiport Valve Part Diagrams
Step 6
If you are still having trouble determining the fix for your Hayward backwash valve then please comment below with the information indicated in step #2 and we will let you know the appropriate fix. Email us at upload@inyopools.com
