How To Wire A PureLine Motor Model PL2228 and PL2229 on 230V

Pool pumps are wired to run on either 230V or 115V. Most are run on 230V and are preset at the manufacturers at 230V. If you are going to wire your own pool pump, you must first know what voltage is coming to your pump from the house circuit breaker.

Step 1

Step 1 image

CAUTION: Before you start wiring your pool pump, turn off all power to the pump at the breaker box.

Step 2

Step 2 image

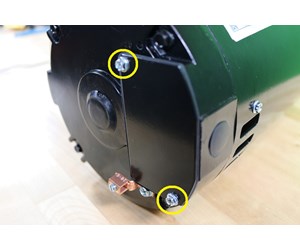

Remove the two screws from the plate at the back of the motor. Set the plate and foam gasket to the side.

Step 3

Step 3 image

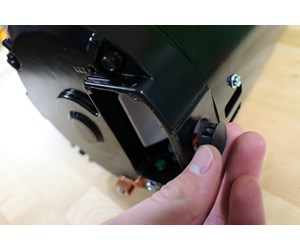

Remove the plug from the conduit hole.

Step 4

Step 4 image

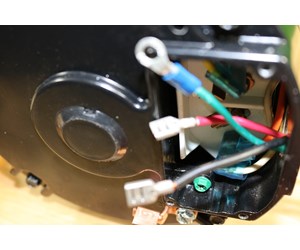

Feed the 3 external wires through the conduit hole. Typically, the 3 external lines will be black, red and ground. These represent the two hot lines and ground respectively.

Step 5

Step 5 image

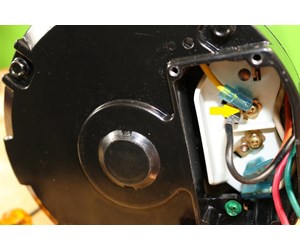

Connect the black (hot) line to terminal L1.

Step 6

Step 6 image

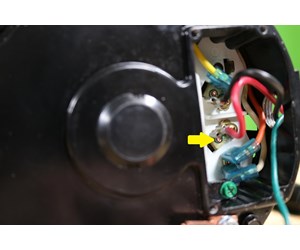

Connect the red (hot) line to terminal L2.

Step 7

Step 7 image

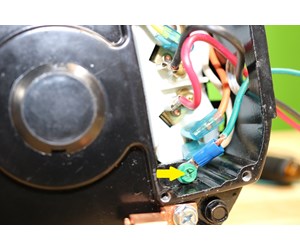

Connect the green (ground) line to the green screw.

Step 8

Step 8 image

Place foam gasket and plate on the back of the motor and tighten the two screws.

Step 9

Step 9 image

Attach the bonding wire to the motor's bonding lug. The bonding wire will either be exposed copper or a copper wire with a green sleeve. This line should already be installed at the pool if the pool was properly bonded.

Step 10

Finally, prime the pump and turn on the power at the breaker.
