How To Short Out a Pool Motor Capacitor

Step 1

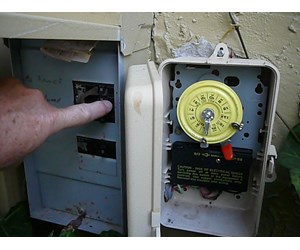

TURN OFF POWER - Turn off the power to the pool pump. For maximum safety turn the power off at the circuit breaker.

Step 2

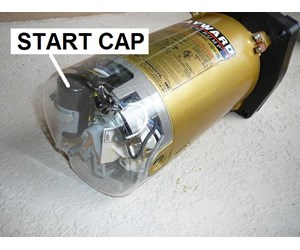

LOCATE START CAPACITOR - The pool pump Start Capacitor is almost always under the cover on the electrical end of the motor - where the power cord goes in. It provides an extra boost in power when the motor first starts up. The Start Capacitor will generally be rated at 50-400 MFD and 125 or 250 VAC.

Step 3

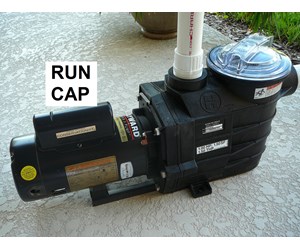

LOCATE RUN CAPACITOR - The Run Capacitor helps the motor run more efficiently during operation. It is almost always located under a bump cover on top of the motor. The run capacitor will generally be rated at 15-50 MFD and 370 VAC.

Step 4

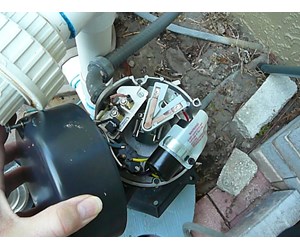

REMOVE COVER - To gain access to the start capacitor, unscrew the two cover screws and remove the cover.

Step 5

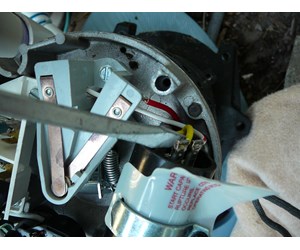

LOCATE CAPACITOR LEADS - The end of the screwdriver is pointing at the leads of the Capacitor. There are three leads. For this motor two leads are yellow and one, going to the switch, is white with a red stripe.

Step 6

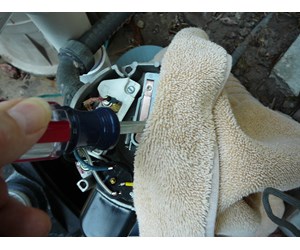

SHORT OUT LEADS - In rare cases a capacitor has been known to explode when shorted out. Wear gloves and eye protection and lay a cloth over the capacitor before you short it out. To short the capacitor place an insulated screwdriver across the three leads of the capacitor. Wiggle it around to make sure you contact all three leads.

Step 7

SHORT RUN CAPACITOR - After you have shorted out the Start Capacitor, repeat the process to short out the Run Capacitor, if applicable.

Step 8

CONTINUE REPAIR - Once the Capacitor(s) residual energy is released, you can continue work on the motor's electrical circuit.
