When your neighbors start complaining about your screeching pump, it's a good sign that the bearings in your pool pump motor have failed and it's time to either replace the motor or replace the bearings in the motor. This guide is broken up into two parts. Part I shows you a step by step approach to removing the bearings of your pool pump motor. Part II shows you how to replace the bearings and reassemble the motor. Although this guide is specific to the Hayward Super Pump Motor, many steps are applicable to other brands of motors. Click Here to Find Your Motor Parts (Including Bearings, Capacitors, Switches & More) Click Here to Find Your Replacement Pool Pump Motor & Gasket Kit
Things You’ll Need
Step 1

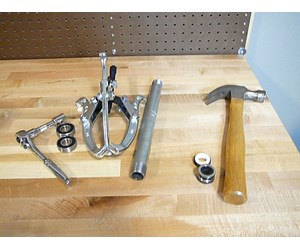

REVIEW TOOLS REQUIRED - This is a picture of most of the tools and parts you will need to replace the bearings of your pool pump's motor. From the left, they include: a socket wrench, a set of new motor bearings, the bearing puller, a short pipe, a set of shaft seal parts, and a hammer. You will also need a set of external ring pliers shown in step #29.
Click Here to Find Your Motor Parts (Including Bearings, Capacitors, Switches & More)
Click Here to Find Your Replacement Pool Pump Motor & Gasket Kit
Step 2

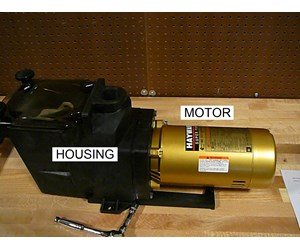

REVIEW PUMP - In this guide we will be removing the bearings of a Hayward Super Pump as shown here. The motor will have to be removed from the pump's housing before we start. See the first part of our guide on "How To Replace the Motor on Your Pool Pump" for instructions on removing this motor.
Step 3

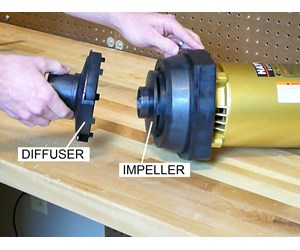

REVIEW STARTING POINT - This is the starting point for this guide. We assume that the motor has been removed from the housing and the diffuser has been snapped off of the impeller.
Step 4

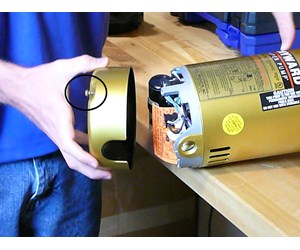

REMOVE ELECTRICAL COVER - At this point you will be removing the motor's impeller. To do that you must first secure the motor shaft. Go to the back end of the motor where the wires come in and remove the electrical cover. It is secured with two screws, one of which is circled in the picture.
Step 5

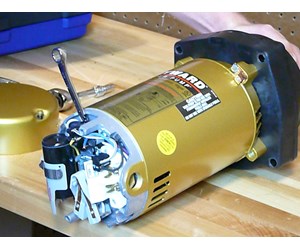

SECURE MOTOR SHAFT - Next, slip a flat open-ended wrench under the capacitor at the location shown until it engages with the flat portion of the shaft. This will keep the shaft from rotating.
Step 6

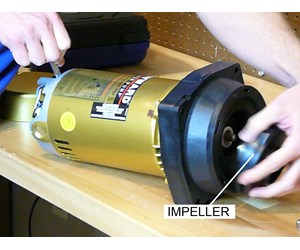

TWIST OFF IMPELLER - Go to the front end of the motor and remove the motor's impeller by rotating it counter-clockwise. If it will not rotate, use a strap wrench to loosen it.
Step 7

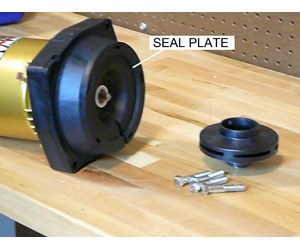

REMOVE SEAL PLATE - Remove the seal plate. At this point it should lift off easily.
Click Here to Find Your Motor Parts (Including Bearings, Capacitors, Switches & More)
Click Here to Find Your Replacement Pool Pump Motor & Gasket Kit

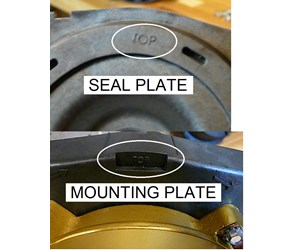

Step 8
VIEW "TOP" MARKINGS - Note the location of the "TOP" markings on both the seal plate and the motor mounting plate. When you reassemble the motor, these markings must be positioned at the top of the motor.
Step 9

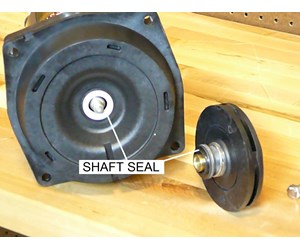

REPLACE MOTOR SHAFT SEAL - When your motor bearings fail, you should replace the shaft seal in your motor. As shown in this picture, the shaft seal is divided into two parts; one half goes on the impeller's shaft and one goes into the well of the seal plate. For more instruction on replacing the shaft seal, go to "How To Replace a Pool Motor Shaft Seal".
Step 10

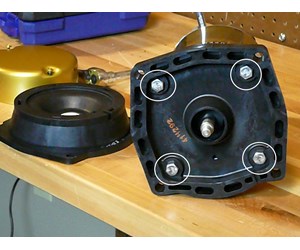

REMOVE MOTOR MOUNTING PLATE - Remove the motor mounting plate. It is attached to the motor with four bolts. Note: these bolts are shorter than the bolts used to secure the motor to the pump housing. Don't mix them.
Step 11

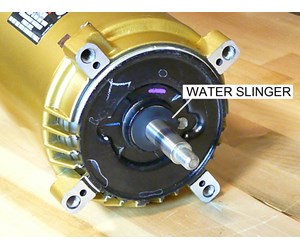

REMOVE WATER SLINGER - After you have removed the mounting plate, you will see a rubber boot around the motor shaft called a water slinger. It helps keep water out of the motor when the shaft seal begins to fail. Slip the water slinger off the shaft.
Step 12

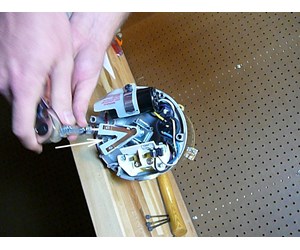

REMOVE V-SWITCH - On a Hayward Super Pump the motor's governor is attached to the end of the motor shaft and must be removed before the shaft and rotor can be removed from the motor shell. To access the governor, first remove the V-switch as shown. It is secured with a single screw. Push it aside. It does not have to be disconnected from its wires.

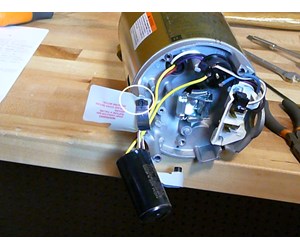

Step 13
MOVE CAPACITOR - Next, release the motor capacitor from its bracket by removing the single screw at the top of the bracket. Push the capacitor to the side as shown. It does not have to be disconnected.
Step 14

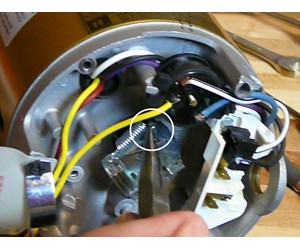

REMOVE GOVERNOR SPRINGS - Now, using a pair of small needle nose pliers, slip the loops of the governor springs off of their post and remove the springs.
Step 15

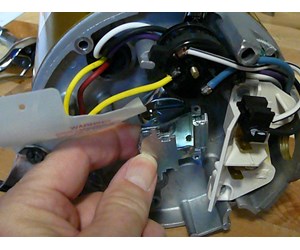

REMOVE GOVERNOR WEIGHT - Remove the governor weight that pivot inside the governor bracket. You may have to apply slight pressure with the needle nose pliers to spread the bracket enough to slip out the weight.
Click Here to Find Your Motor Parts (Including Bearings, Capacitors, Switches & More)
Click Here to Find Your Replacement Pool Pump Motor & Gasket Kit
Step 16

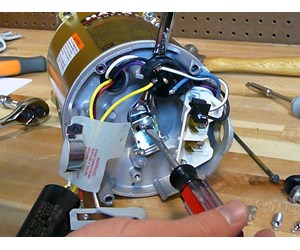

REMOVE GOVERNOR BRACKET - The screw that secures the governor bracket to the shaft should now be visible. Remove the screw and take out the bracket.
Step 17

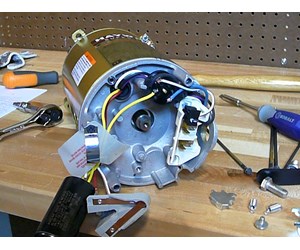

VIEW DISASSEMBLED REAR END - From this picture you can see the freed end of the motor shaft.
Step 18

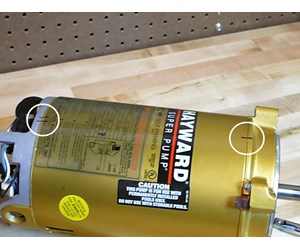

MARK END FRAMES - Mark the end frames and shell with a magic marker so the motor can be reassembled in the original configuration.

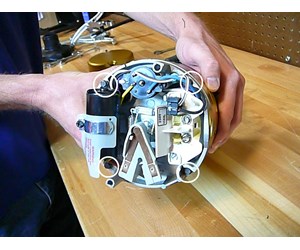

Step 19
VIEW END BOLTS - The motor is held together end to end with four through bolts. The heads of these bolts are shown in the picture.
Step 20

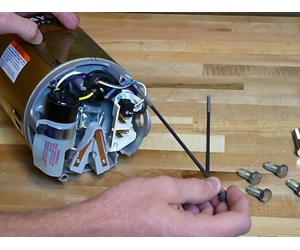

REMOVE THROUGH BOLTS - Unscrew the four through bolts and pull them out.

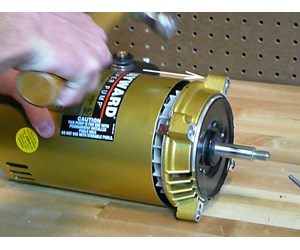

Step 21
KNOCK OFF FRONT END BELL - Using a hammer, lightly tap off the front end bell to separate it from the motor's shell.
Step 22

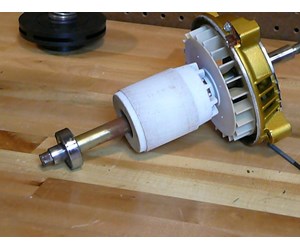

PULL OUT ROTOR AND SHAFT ASSEMBLY - Pull the motor's rotor and shaft assembly out of the motor's shell.

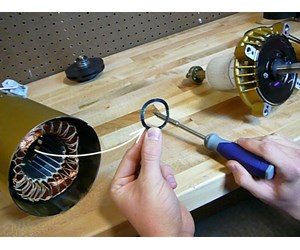

Step 23
LOCATE REAR BEARING LOAD SPRING - This motor has a circular bearing load spring in the rear bearing well. If the spring did not come out with the shaft, extract it from the rear well or shell,

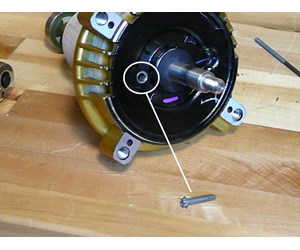

Step 24
REMOVE BEARING LOCKING SCREW - The front bearing is held in position with a lock clip. Remove this clip by removing the locking screw shown in the picture. The locking clip should drop through the bottom of the motor.
Click Here to Find Your Motor Parts (Including Bearings, Capacitors, Switches & More)
Click Here to Find Your Replacement Pool Pump Motor & Gasket Kit
Step 25

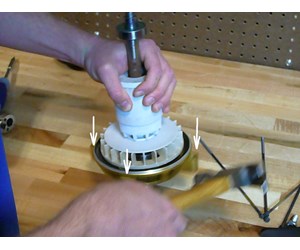

REMOVE FRONT END BELL - Remove the front end bell from the shaft by tapping the tabs of the bell lightly with a hammer. Continue tapping around the bell until the bell drops off.
Step 26

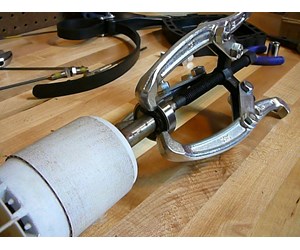

SET UP BEARING PULLER - Set up the bearing puller on the rear bearing as shown. The three teeth of the puller should be position of the outside race of the bearing to clear the clip ring on the backside of the bearing. The center post of the bearing puller should be positioned on the center of the motor shaft.
Step 27

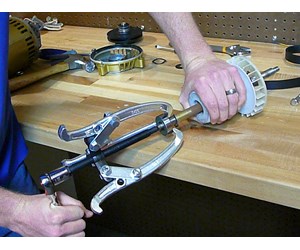

PULL OFF REAR BEARING - Turn the nut on the bearing puller to work the bearing off the end of the motor shaft.
Step 28

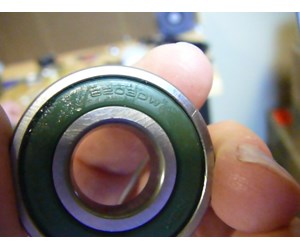

CHECK BEARING ID - Check the id stamped into the side of the bearing to make sure you have bought the correct replacement bearing. This bearing reads 6203DW.
Step 29

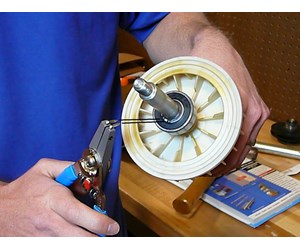

REMOVE FRONT BEARING SNAP RING - The front bearing is held in place with a snap ring that will prevent the bearing from coming off the shaft. Using a pair of external ring pliers, spread the snap ring out of its groove on the shaft and slip the ring forward off the shaft.

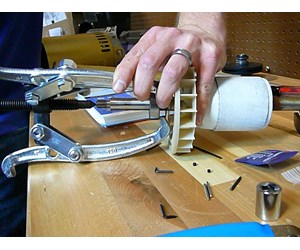

Step 30
PULL OFF FRONT BEARING - Using the bearing puller as before, pull off the front bearing. There isn't much space behind this bearing, so you may have to jiggle the puller jaws around a bit to position them behind the bearing.

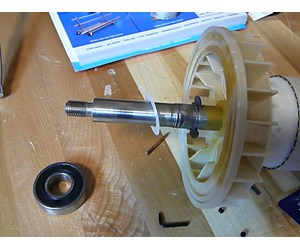

Step 31
SLIP OFF WASHER - There is a white washer behind the front bearing. Pull the washer off and set it aside.
Step 32
MOTOR DISASSEMBLY COMPLETE - This concludes the steps required to disassemble the motor and remove the motor bearing. For instructions on replacing the bearings and reassembling the motor see our guide on 'How To Replace the Bearings in a Pool Pump Motor - Part II.
