How To Program A PureLine Pure Flow PL1615

In this guide we explain how to program a PureLine Pure Flow PL1615 variable speed pump. This guide is intended to give you a visual reference to supplement the PureLine Pure Flow owner's manual, not replace it. Make sure you read and understand your owner's manual before programming your pump.

---

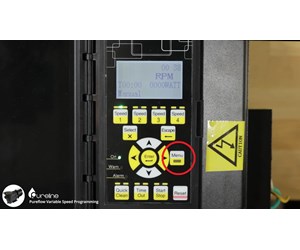

Step 1

The first step, after turning on the power, is to set the time. Press the Menu button.

---

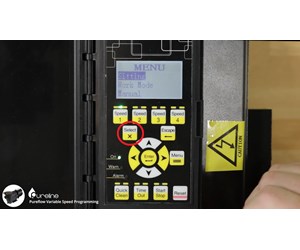

Step 2

The Menu will appear with Settings highlighted. Press Select.

---

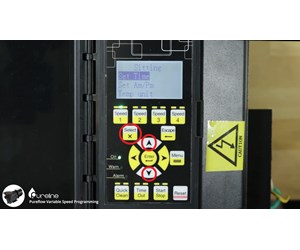

Step 3

Use the Up or Down arrow keys to scroll to Set Time. Once Set Time is highlighted, press Select.

---

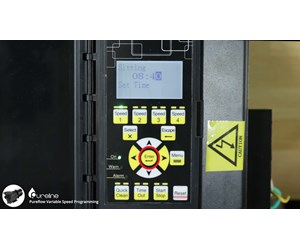

Step 4

Use the left and right arrow keys to move the curser and the up and down arrow keys to change the numbers. Once the time is set, press the Enter button. This will save the time setting.

---

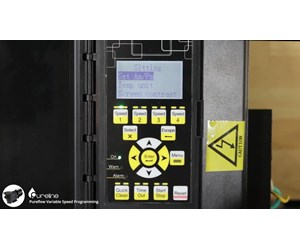

Step 5

Next, the clock will need to be set for a 12 hour (AM/PM) or a 24 clock. In the settings menu, use the up and down arrow keys until Set AM/PM is highlighted. Press Select.

---

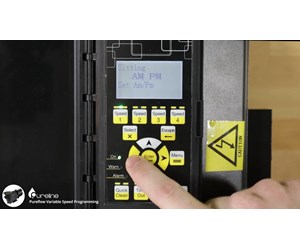

Step 6

Use the left and right arrow keys to switch between AM/PM or 24HR. Press Enter once the desired setting is displayed.

---

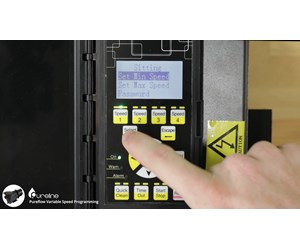

Step 7

The next steps involve setting the minimum and maximum speeds.  In the settings menu, press the up or down arrow keys to highlight Set Min Speed. Press Select.

---

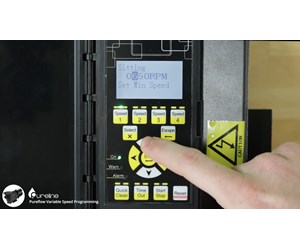

Step 8

Use the left and right arrow keys to move the curser and the up and down arrow keys to change the numbers. Once the minimum speed is set, press Enter.

---

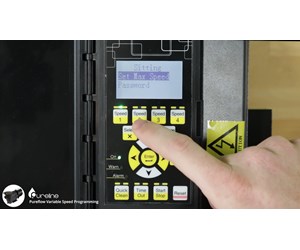

Step 9

In the settings menu, press the up or down arrow keys to highlight Set Max Speed. Press Select.

---

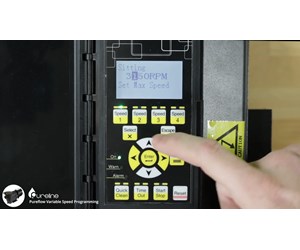

Step 10

Use the left and right arrow keys to move the curser and the up and down arrow keys to change the numbers. Once the maximum speed is set, press Enter.

---

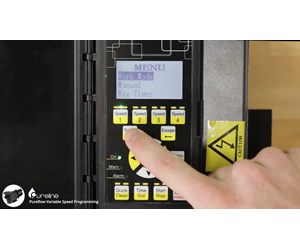

Step 11

The next steps will involve setting a schedule for the pump. Press Escape to get back to the main menu. Use the up and down arrows to highlight Work Mode. Press Select.

---

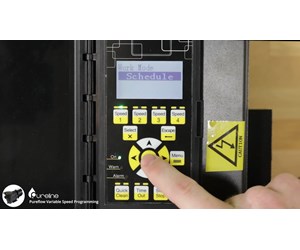

Step 12

Use the left and right arrows to change the setting to Schedule. Once Schedule is displayed, press Enter.

---

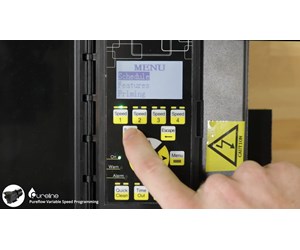

Step 13

To set the schedule, scroll down the Menu until Schedule is highlighted. Press Select.

---

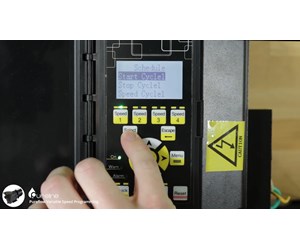

Step 14

Press Select again when Start Cycle1 is highlighted.

---

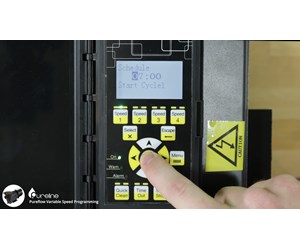

Step 15

Using the left and right arrows, move the curser to highlight the numbers. Use the up and down arrows to change the numbers and set the time when you want the pump to turn on. Hit Enter once the time is set.

---

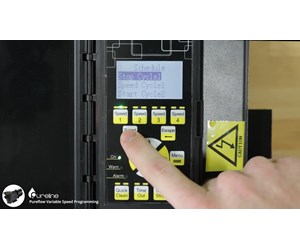

Step 16

Use the down arrow to highlight Stop Cycle1. Press Select when Start Cycle1 is highlighted.

---

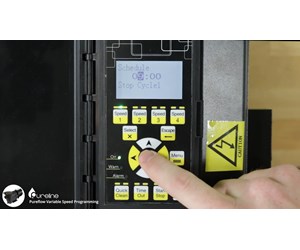

Step 17

Using the left and right arrows, move the curser to highlight the numbers. Use the up and down arrows to change the numbers and set the time when you want the pump to turn off. Hit Enter once the time is set.

---

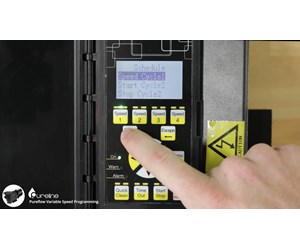

Step 18

Use the down arrow to highlight Stop Cycle1. Press Select when Speed Cycle1 is highlighted.

---

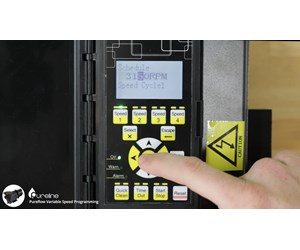

Step 19

Using the left and right arrows, move the curser to highlight the numbers. Use the up and down arrows to change the numbers and set the RPM Speed. Hit Enter once the speed is set.

---

Step 20

Repeat steps 14-19 if you'd like to program additional cycles. Additional programs would be scheduled if you'd like the pool pump to run at various speeds and durations throughout the day.

---

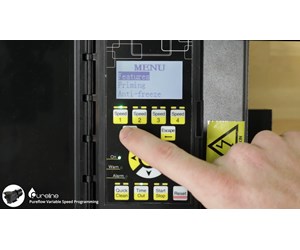

Step 21

The next steps involve setting the Quick Clean mode. The Quick Clean mode would be used if you want to override a schedule in order to perform a backwash, clean the pool, or anything else that may require additional flow.

To set the Quick Clean mode. Press Menu and then use the up or down arrows to highlight Features. Press Select.

---

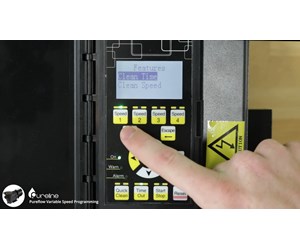

Step 22

Click Select while Clean Time is highlighted.

---

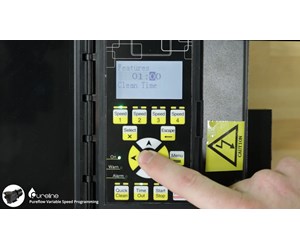

Step 23

Using the left and right arrows, move the curser to highlight the numbers. Use the up and down arrows to change the numbers and set the quick clean duration. Once the duration is set, click Enter.

---

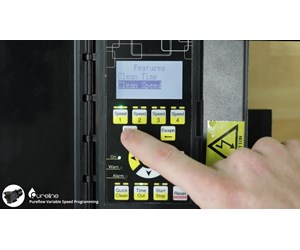

Step 24

In the Features menu, highlight Clean Speed. Press Select.

---

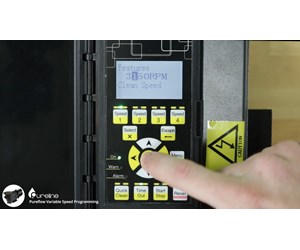

Step 25

Using the left and right arrows, move the curser to highlight the numbers. Use the up and down arrows to change the numbers and set the quick clean speed. Once the speed is set, click Enter.

---

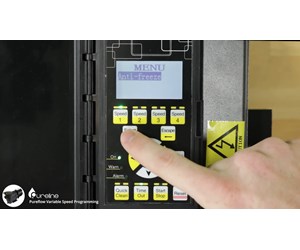

Step 26

There is built-in Anti-Freeze protection with the PureLine PL1615. In the Menu list, scroll down until Anti-Freeze is highlighted. Press Select.

---

Step 27

On the next screen, click Select when Anti Freeze is highlighted.

---

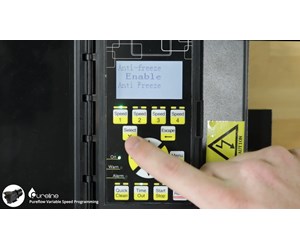

Step 28

Click the left or right arrow keys to alternate between Disenable and Enable. For this example, we'll press Select when Enable is displayed.

---

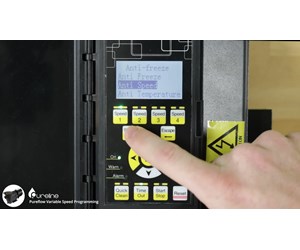

Step 29

Under the Anti-Freeze menu, Press Select when Anti Speed is highlighted.

---

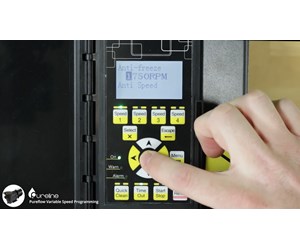

Step 30

Using the left and right arrows, move the curser to highlight the numbers. Use the up and down arrows to change the numbers and set the speed. Once the speed is set, click Enter.

---

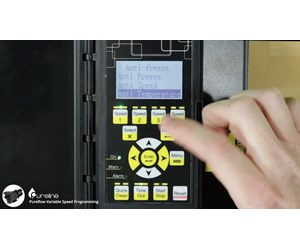

Step 31

Press the down arrow key and highlight Anti Temperature. Press Select.

---

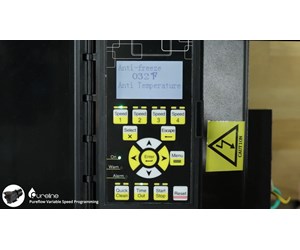

Step 32

The temperature is preset at 32°F. You can change that temperature or leave it as is.

That wraps up the basic programming of a PureLine PL1615 variable speed pump. Feel free to leave a comment if you have any questions.

---
