If you currently have a single speed (SS) pump and you would like to reduce your pool operating costs by as much as 80%, you should consider upgrading your pump with a Century Variable Speed (VS) V-Green 165 Pool Motor. To get these savings, it is only necessary to replace the motor. In all but a few cases, you would keep the housing end of the pump and just replace the motor. In this guide, we are replacing the SS motor of a Hayward Super 2 pump with a Century Variable Speed (VS) V-Green 165 Pool Motor. The VS motor adapts easily to the existing pump housing. Depending on your pump model, you would select either the VS motor with a square flange or one with a round flange. Although this guide features a Hayward Super II pump and a Century Variable Speed (VS) V-Green 165 Pool Motor, most of these steps are adaptable to most pumps.
Things You’ll Need
- Century 1.65 HP Variable Speed Pool Pump Motor ROUND Flange
- Century 1.65 HP Variable Speed Pool Pump Motor SQUARE Flange
- GOKIT
Step 1
COLLECT TOOLS - Here's a list of common tools you will need to replace your motor: screwdrivers (Phillip head and flat), 9/16" socket wrench, 7/16" open end wrench, channel wrench or strap wrench, silicon gasket lubrication (do not use petroleum jelly), clean soft cloth, "GO KIT" - pool pump seal replacements
Step 2

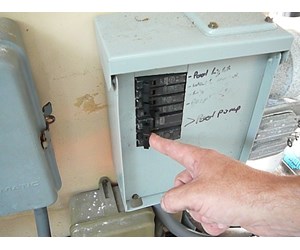

TURN OFF POWER - Before you start, make sure that the power to the pump is turned OFF. For maximum safety turn off the power at the circuit breaker to the motor.
Step 3

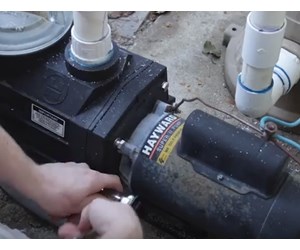

REMOVE HOUSING BOLTS - Next you will want to remove the motor pool pump assembly from the wet end housing. Remove the six 9/16" bolts that hold the motor pool pump assembly to the housing. Note: some models have four bolts.
Step 4

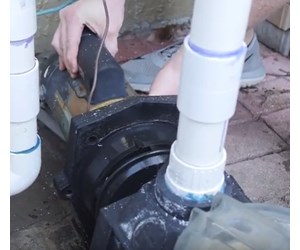

PULL MOTOR OUT - Slide the motor assembly out of the pool pump housing. After the assembly is out, you should see the diffuser and diffuser gasket on the end of the assembly. If you do not see the diffuser or its gasket, check inside the housing.
Step 5

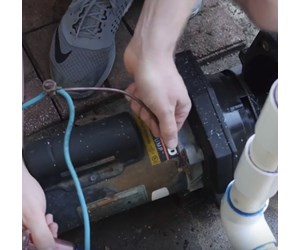

DISCONNECT BONDING WIRE - Unfasten the heavy copper bonding wire from bonding lug on pool pump motor. There may be more than one wire attached to this lug. You may have to use pliers if this lug is rusted.
Step 6

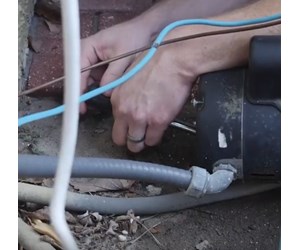

REMOVE SCREWS ON ELECTRICAL COVER - To gain access to the wiring, unscrew the two cover screws.
Step 7

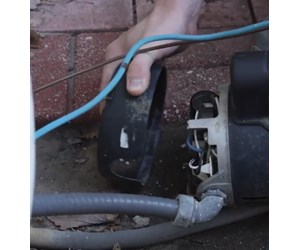

REMOVE COVER - When you remove the cover, you will see a large capacitor.
Step 8

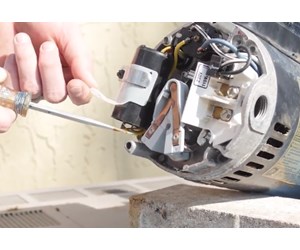

DISCHARGE CAPACITOR - Capacitors store power even when the pump has been turned off. To avoid a possible shock, you want to short out the capacitor by laying an insulated screwdriver across its leads. On rare occasion, these capacitors have been known to explode so it's a good practice to wear eye protection and to cover the capacitor with a cloth before shorting the leads.
Step 9

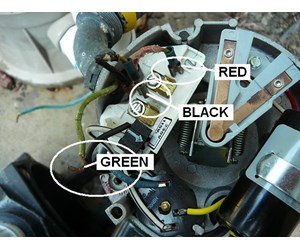

DISCONNECT POWER WIRES - Disconnect the three wires coming into the motor through the conduit. Use needlenose plyers to lift the red and black wires off their terminals and a screwdriver to remove the green ground wire.
Step 10

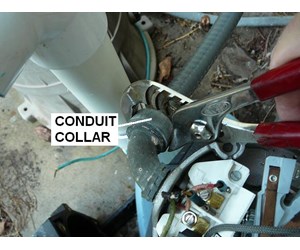

UNSCREW CONDUIT COLLAR - Unscrew the conduit collar to disconnect the conduit from the pool pump. You may need to use channel lock pliers.
Step 11

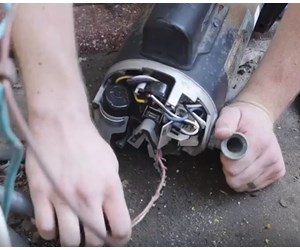

PULL POWER WIRES - Pull the three wires through metal elbow. Be careful that you do not strip the insulation off of the wires as you are pulling them out of the metal elbow. These are generally stiff wires. It will help to straighten them out before pulling them through the elbow.
Step 12

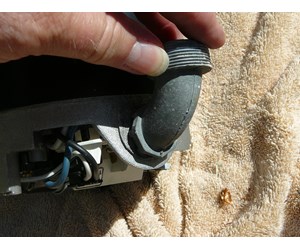

REMOVE ELBOW - Unscrew the metal conduit elbow. You will use it on the new motor.
Step 13

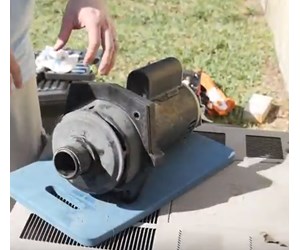

MOVE MOTOR - The motor is now completely disconnected and can be lifted out to be worked on in a more convenient area. We still have to remove the front end units off of the motor shaft including the diffuser, impeller and motor plates.
Step 14

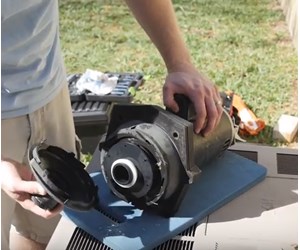

REMOVE DIFFUSER - Pull the pool pump diffuser away from the motor assembly. It should snap off easily exposing the impeller.
Step 15

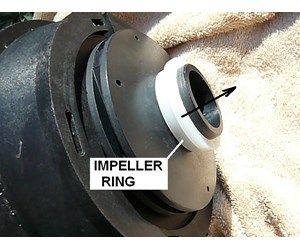

REMOVE IMPELLER RING - Remove the impeller ring. Note how the ring was placed on the impeller with the broader side up. This is marked on this ring but may not be marked on all rings. Note: Some motors do not have this impeller ring so don't panic if you can't find one.
Step 16

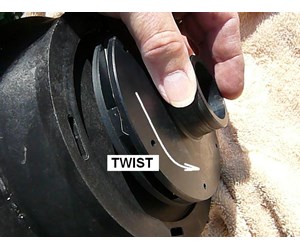

PREPARE TO REMOVE IMPELLER - To remove the impeller you will twist the impeller off in a counter-clockwise motion. The impeller cannot be freed from the motor shaft without first securing the motor shaft. Move to the back electrical end of the motor.
Step 17

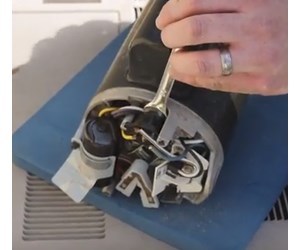

SECURE MOTOR SHAFT - To secure the shaft from rotating, slide a 7/16" wrench behind the thermal protector until it engages with the flat end of the motor shaft.
Step 18

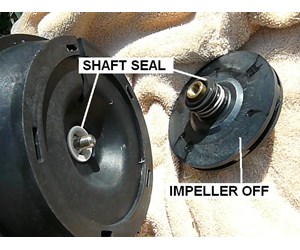

REMOVE IMPELLER - At the impeller end, twist off the impeller in a counter-clockwise. You may have to use a strap wrench to free up the impeller. It applies even pressure and is less likely to damage the impeller then something like channel lock pliers. This picture shows the two parts of the motor shaft seal after the impeller is off. We will replace these two parts of the shaft seal later in the guide.
Step 19

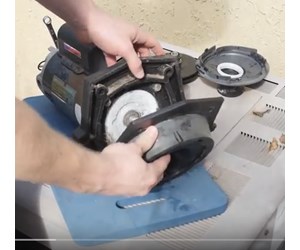

LIFT OFF SEAL PLATE - Remove the seal plate. It should just lift off.
Step 20

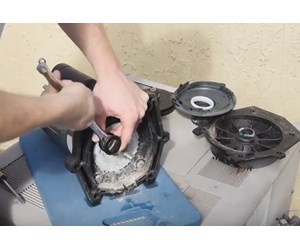

REMOVE MOTOR PLATE BOLTS - Using a 9/16" socket wrench, remove the four bolts that hold the motor mounting plate to the motor.
Step 21

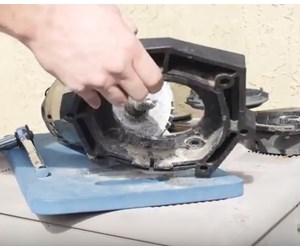

REMOVE MOTOR PLATE - Lift off the motor mounting plate.
Step 22

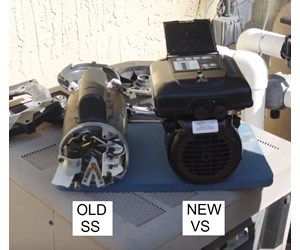

VIEW MOTORS - This picture shows the old SS motor next to the new VS V-Green 165 motor.
Step 23

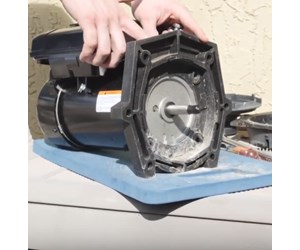

PLACE MOTOR PLATE ON NEW MOTOR - Place the motor mounting plate onto the new motor. Make sure that the mounting plate is placed correctly. For this pump, the top of the motor mounting plate is labeled "TOP".
Step 24

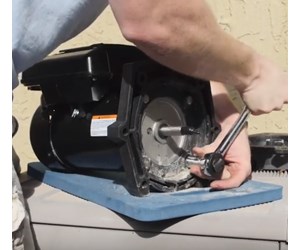

BOLT ON MOTOR PLATE - Bolt the motor mounting plate onto the new motor with the 4 bolts. It's a good practice to alternate bolts when tightening (1,3,2,4) to seat the plate correctly.
Step 25

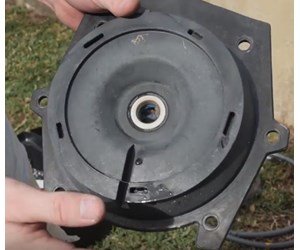

INSPECT SEAL PLATE - Inspect the motor seal plate for cracks or other damage. Replace the plate if required.
Step 26

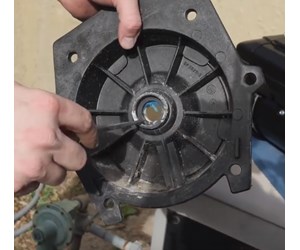

POP OUT SHAFT SEAL - Half of the old shaft seal is still in the seal plate. Turn the plate over and pop the seal out with a screwdriver.
Step 27

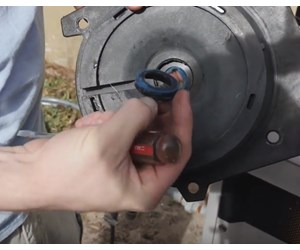

CLEAN OUT SEAL PLATE - If the shaft seal was glued in, you may need to clean out the hole in the plate.
Step 28

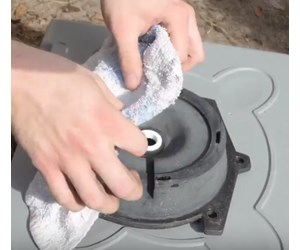

PLACE WHITE HALF OF SHAFT SEAL - Set the new seal on the shaft inside the seal plate - white side up. Be very careful NOT TO TOUCH the white ceramic side of the seal with your hands.Use a clean cloth to push the seal into the seal plate.
Step 29

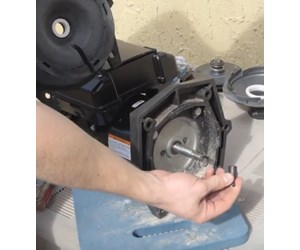

DISCARD SHAFT PROTECTOR - Discard the plastic shaft protector on the end of the motor shaft.
Step 30

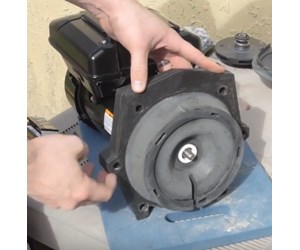

PUT SEAL PLATE ON MOTOR - Place the motor seal plate onto the motor shaft seal so that it matches up with the motor mounting plate.
Step 31

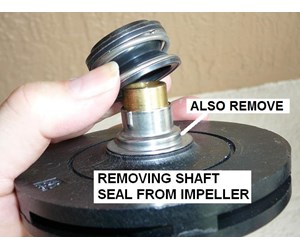

REMOVE SHAFT SEAL FROM IMPELLER - Grab the seal on the pool pump impeller and twist it off. Make a note of how the seal is positioned on the impeller so you know how to place the new seal. It is possible to place this seal upside down. Note: You may have to also have to remove the metal collar if the new shaft seal also has one. Several people have written in saying that the new seal won't fit because they were trying to place the new collar on top of the old one.
Step 32

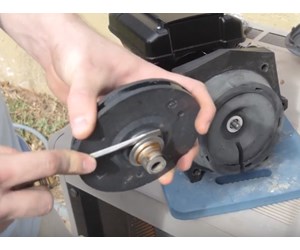

REMOVE METAL COLLAR FROM IMPELLER - Using a flat headed screwdriver, pry the metal collar off of the impeller.
Step 33

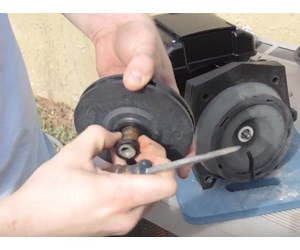

REMOVE RESIDUE FROM IMPELLER - Remove any other residue off of the impeller shaft.
Step 34

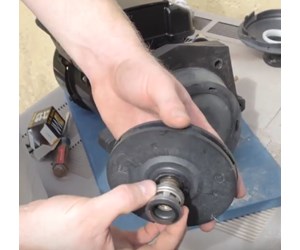

PUT NEW HALF OF SHAFT SEAL ON IMPELLER - Push the other half of the new seal onto the pool pump impeller. Place the new seal with the black SHINY side facing out. Again, DO NOT touch the shiny surface of the seal that will make contact with the white surface of the seal in the seal plate. Fingerprints will cause the surfaces to burn.
Step 35

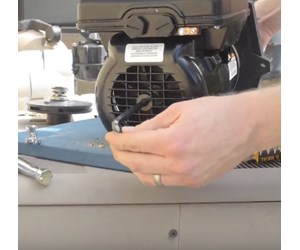

STABILIZE MOTOR SHAFT - At this point, we will want to put the impeller onto the new motor shaft which requires us to stablize the motor shaft. This motor has a little different setup than the single speed motor. To stabilize this motor shaft, you need to place a 5/16" Allen wrench into the hole in the back of the motor. Spin the shaft a little until the end of the shaft engages with the Allen wrench.
Step 36

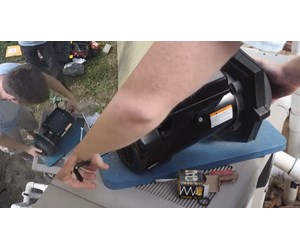

TWIST IMPELLER ONTO MOTOR SHAFT - Place the impeller onto the motor shaft and spin it on with a clockwise motion. Do not overtighten. Just firm it up.
Step 37

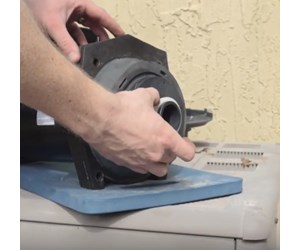

PLACE IMPELLER RING ONTO IMPELLER - Place the white impeller ring onto the impeller with the wide side out. This is commonly marked on the ring.
Step 38
REMOVE OLD DIFFUSER GASKET - The GOKIT contains all the gaskets required to replace a motor including the diffuser gasket. Remove the old diffuser gasket from the diffuser.
Step 39

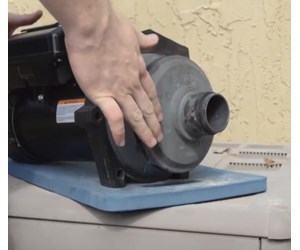

PLACE DIFFUSER ONTO SEAL PLATE - Place the diffuser onto the seal plate. It should just snap on. Make sure the diffuser is positioned correctly with the "TOP" label at the top.
Step 40

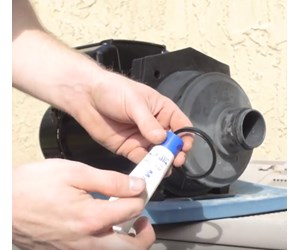

LUBRICATE DIFFUSER GASKET - Lubricate the diffuser gasket using a Teflon or silicone lubricant.
Step 41

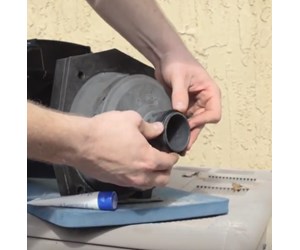

SLIDE DIFFUSER GASKET ONTO DIFFUSER - Push the diffuser gasket onto the front of the diffuser to the base of the collar.
Step 42

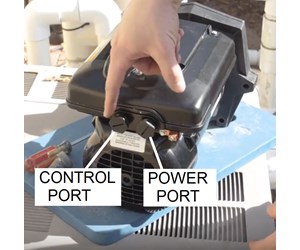

VIEW ELECTRICAL PORTS - On the back of the motor, you will see two electrical ports. The right one is for the high voltage supply wires and the left one is for display and control low power voltage. Since we are not going to use the low voltage port at this time, make sure it is tightly closed.
Step 43

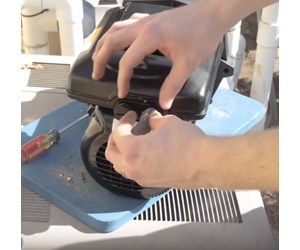

REPLACE HIGH VOLTAGE PLUG WITH ELBOW - Remove the plug on the high voltage port and replace it with the elbow from the old motor.
Step 44

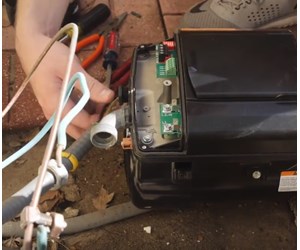

REMOVE TERMINAL COVER - Remove the cover over the electrical terminal. It is held on with a single screw.
Step 45

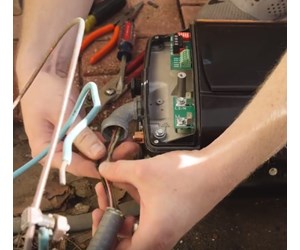

INSERT POWER WIRES THOUGH ELBOW - Insert the three power wires through the electrical elbow. Be careful that you do not strip the wire insulation on the metal edges.
Step 46

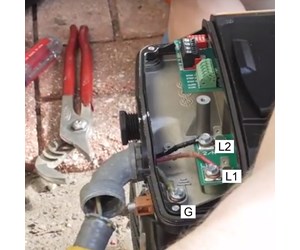

CONNECT POWER WIRES TO TERMINAL - Connect the three power wires to the motor terminal. Black wire (hot) to terminal L1; Red wire (hot) to terminal L2; and green ground wire to the ground screw.
Step 47

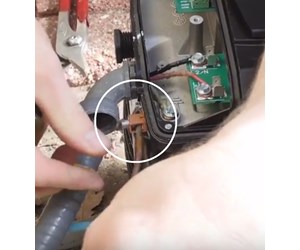

ATTACH BONDING WIRE - Attach the bonding wire onto the motor's bonding lug.
Step 48

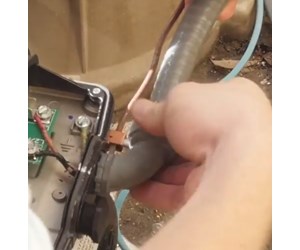

ATTACH CONDUIT COLLAR - Screw on electrical conduit collar onto the elbow.
Step 49

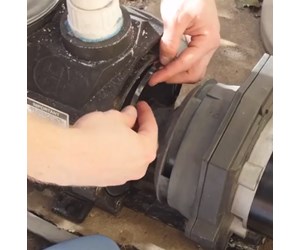

REPLACE HOUSING GASKET - Replace the old housing gasket with the new one from the GOKIT. Lubricate the new gasket with a Teflon or silicon-based lubricant
Step 50

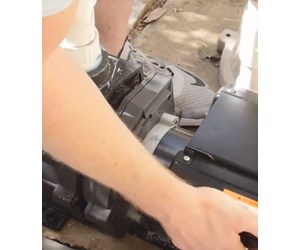

PUSH MOTOR INTO PUMP HOUSING - Clean the portion of the motor plate that come in contact with the housing gasket and insert motor assembly into the pump housing.
Step 51

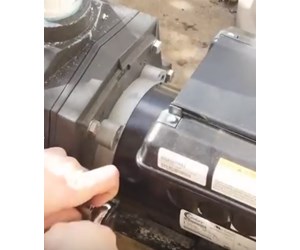

BOLT ON MOTOR ASSEMBLY - Attached the motor assembly with the six bolts. When screwing in the bolts, alternate tightening bolts a few turns at a time (1,3,5,2,4,6) to seat the motor assembly evenly and prevent leaking.
Step 52

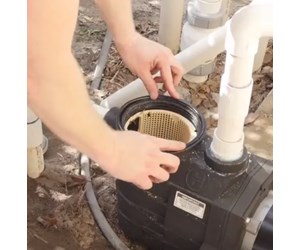

REPLACE STRAINER COVER GASKET - Remove the strainer cover and replace the old strainer cover gasket with a new one (in GOKIT). Lubricate gasket.
Step 53

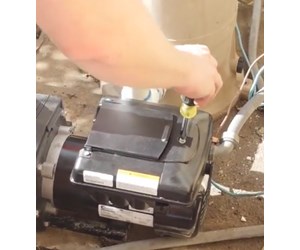

REPLACE TERMINAL COVER - Replace the cover over the electrical terminals. Secure it with single screw.
Step 54

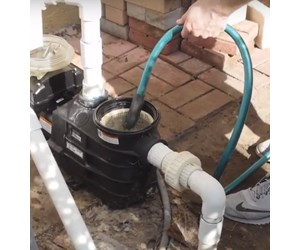

PRIME PUMP - Prime the pump and replace the cover.
Step 55

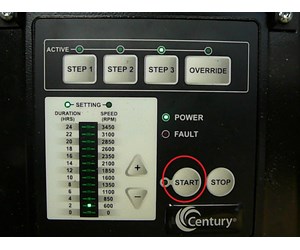

START MOTOR - Turn on power to the pump at the circuit breaker and push the start button on the motor control pad.
Step 56
REPLACEMENT COMPLETE - You have successfully replaced a single speed motor with a Century Variable Speed V-Green 165 Pool Motor. If you have any other questions, feel free to call us at 407-834-2200 or visit us at Inyopools.com
