How To Fix a Hot Pump Motor

Step 1

Pump in an unventilated enclosure - An operating pump needs air circulating around it to cool. It cannot be enclosed in a closed unventilated container or shed.

Step 2

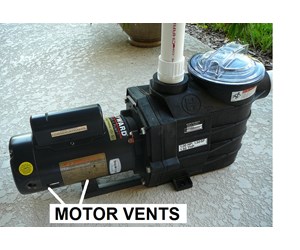

Motors bottom vents are clogged - A motor has to have air circulation under it, If the vents at the bottom of the motor are clogged with debris or dirt, clear the vents.

Step 3

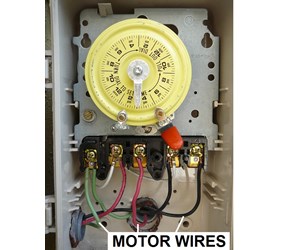

Low voltage to pump - Check the voltage coming into your pump. Low voltage will overheat your pump. The voltage must be within 10% of the motor's data plate rating. If it is not, then a qualified electrician and/or the power company must be involved to correct the low power supply.

Click here to view motors.

Step 4

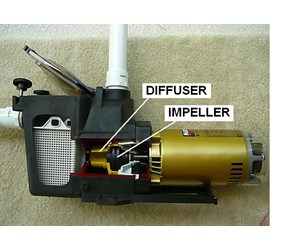

Pump overloaded - Impeller is too large for motor. If your recently replaced a motor with a smaller motor and did not reduce the size of the impeller, you may be overloading your motor. The smaller motor is trying to move the same amount of water that the larger motor moved because it is driving the same size impeller. This is a common problem when your replace a Full Rated motor with a Uprated motor They both are labeled as the same HP, but the uprated motor is actually 25-50% smaller than the old Full Rated motor.

Step 5

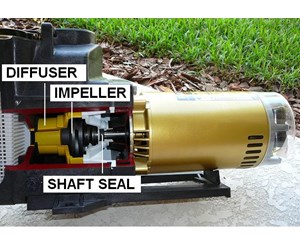

Impeller worn and rubbing on diffuser - If your impeller is old and the threads are loose or if it is broken by hard debris, it may be rubbing against the diffuser inside the pump. Pull the motor out and check the impeller. Replace the impeller and possibly the diffuser if required. See our guide on "How To Replace A Pool Pump Impeller" for more information.

Click here to view pump impellers.

Step 6

Note: a partially clogged circulation system or dirty filter will not cause the motor to run hot unless there is little or no water to cool the motor. When the water flow is reduced due to a clog, the pump is moving less water which converts to less work and less energy expended.
