How To Determine Why a Motor Won't Start or Shuts Off

Step 1

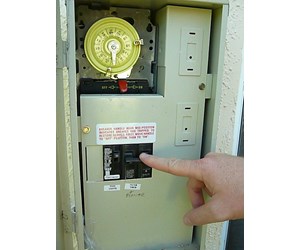

No power to the motor- Check for improper or loose connections, open switches or relays and blown circuit breakers or fuses. Check for broken power cords.

Step 2

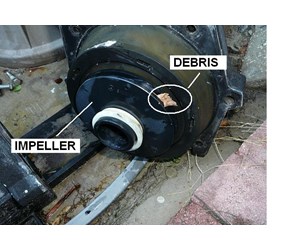

Jammed motor - Check that the motor shaft rotates easily. If it's stuck, check that the impeller is not jammed with debris. Check that the impeller or diffuser is not broken. If the impeller is good, your problem may be bad motor bearings. Replace bearings/motor or impeller as required.

Click here to view motor bearings.

Click here to view pump impellers.


Step 3

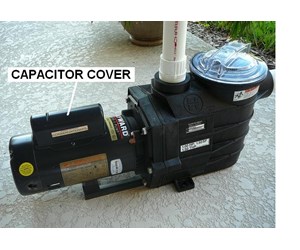

Motor hums but will not turn over - Check for a bad capacitor. You may have two: a run capacitor and a start capacitor. Some motors have a governor at the electrical end of the shaft. Check that it is not stuck open. If your capacitor(s) and governor are good and the motor shaft rotates easily you probably have a burned out motor coil and you will need to repair or replace the motor.

Click here to view motor parts.


Step 4

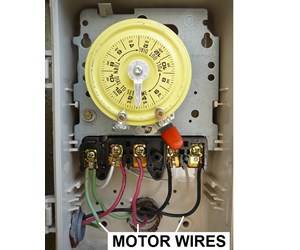

Motor gets hot and shuts down - Generally due to low voltage or being overloaded. Check that the motor is wired correctly. If the motor is configured for 230V and has 115V coming in, it will shut down after running 3-5 minutes. Check for loose connections. Check for undersized wiring. For a hook-up to the circuit box of under 50', pumps of up to 2HP wired for 230V need No. 14 size wire, For pumps wired for 115V, the wire size must be No. 14 for 1/2 and 3/4 HP; No 12 for 1 HP; and No. 10 for 1 1/2 and 2 HP. Check that the motor is not overloaded. Does the pump have the correct impeller and diffuser for this motor? Is the impeller worn and rubbing on the diffuser.

Step 5

Note: Most pump motors have Automatic Thermal Overload Protection. The motor will automatically shut off before the motor generates enough heat to damage itself. Once a normal heat level is reached, the motor will automatically restart. CAUTION: If the motor operates in this on/off mode for any length of time it will burn out.
