This guide provides explanations and tips for troubleshooting your pool for low water flow issues. We also provide links to any relevant guides for more in-depth guides. Click Here to Find Your Pool Pump Replacement Parts (Gaskets, Baskets, Impellers & More)
Step 1

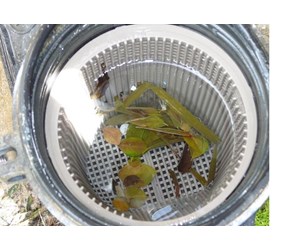

Clogged Pump Strainer Basket - Remove the strainer basket and clean debris out with a hose.
Related Articles:
Step 2

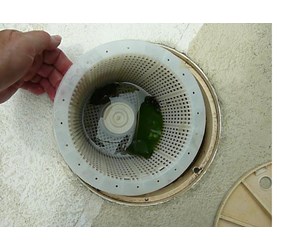

Clogged Skimmer Basket - Remove the skimmer basket and clean debris out with a hose.
Click Here to Find Your Replacement Skimmer Basket
Related Articles:
Step 3

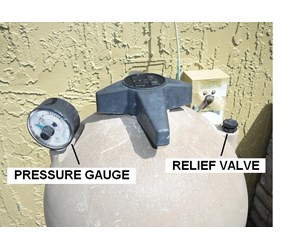

Clogged Filter - If your filter water pressure is creeping up to 10 SI above your filter's clean reading, the filter is clogging with too many contaminates and it is time to clean it. Increasing pressure goes hand in hand with decreasing water flow.
Click Here to View Replacement Pool Filter Cartridges & D.E. Grids
Related Articles:
- How To Clean a Hayward DE Filter Grid Assembly
- How To Backwash a Pool Sand Filter
- How To Clean A Pool Filter Cartridge
Step 4

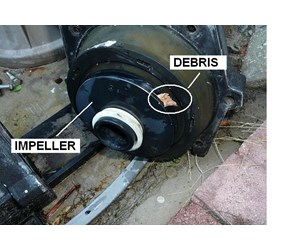

Clogged Impeller - If the pump's impeller is clogged with debris, water will not be able to flow out the side slots and generate a vacuum. Without a vacuum, the pump will not be able to suck as much water into the pump which reduces water flow. Remove the impeller and clean out the debris.
Click Here to Find Your Pool Pump Replacement Parts (Gaskets, Baskets, Impellers & More)
Related Article
Step 5

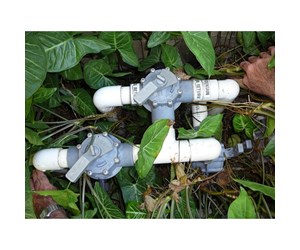

Excessive Water Demand - Are all the valves adjusted correctly? Too much equipment on at one time will stop many cleaners from working (waterfalls, spa jets, surface returns, etc.).
Related Articles:
- How to Correct Low Water Pressure in Your Pool System
-
How to Reduce High Pressure in Your Pool System
Step 6

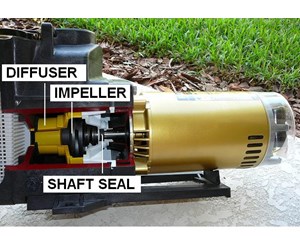

Undersized Impeller - When you last replaced a motor, did you match the impeller (and possibly the diffuser) to the new motor? If you put in a larger motor, you may have an undersized impeller.
Click Here to Find Your Pool Pump Replacement Parts (Gaskets, Baskets, Impellers & More)
Related Article:
Step 7

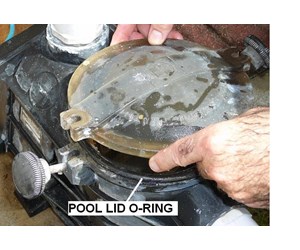

Air Leak on Suction Side - A suction leak will reduce the vacuum generated in the pump which will reduce water flow and possibly lead to lose of priming in the pump.
Related Article:
Step 8

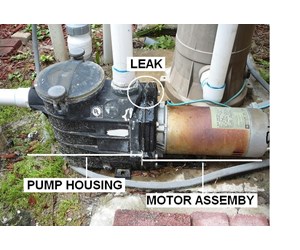

Water Leak in the Pressure Side of the Pump - A pressure leak will cause lose of water and water pressure in the circulation lines between the pump and the pool return ports. Generally these leaks can be corrected by replacing a bad gasket in the pool equipment after the pump.
Related Article:
Step 9

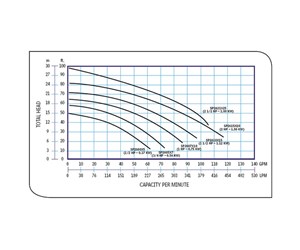

Pump Too Small - The pump suction cannot overcome the total dynamic head (line resistance) in your pool circulation system.
Click Here to Find Your Pool Pump Replacement Parts (Gaskets, Baskets, Impellers & More)
Related Article:
- Can I Go With A Higher Horsepower Pump?
- How to Select an Inground Pool Pump
- How To Select Above Ground Pool Pumps
Step 10
Underground Leak - If you have an underground leak, you can dig up some of the lines yourself. However, for generally less than $100 to $200 you can have a professional come in with special detection equipment that will pinpoint your leak including areas under the pool that you can't get to. Costs to repair the leak will vary according to where it is.
Click Here to View Our Filter Cleaner Chemicals Treatment
Related Articles:
