How the Common Capacitor Start Pool Motor Works

Step 1

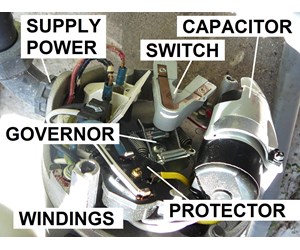

IDENTIFYING COMPONENTS - After you remove the motor cover on the electrical end of the motor, you will see the motor's electrical circuits. This picture shows the location of most of the components of the supplemental start circuit on a common Capacitor Start Pool Motor. Note: The Windings are not visible on this picture. They are incorporated in the actual motor. The function of each component follows.

Step 2

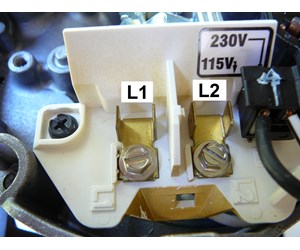

SUPPLY POWER - Power from the main circuit board comes into the pump motor at this point. Usually it is conveyed on three lines: to power and one ground. If the supply power is 230V, the two power lines will both be hot - 240V across them. If the supply [power is 120V, the power line will be hot and the other neutral. The power lines are connected to the power terminal at L1 and L2 terminals. The green ground wire goes to a grounding screw attached to the frame of the motor.

Step 3

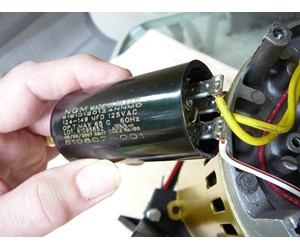

CAPACITOR - This Capacitor, referred to as a Start Capacitor, is tied directly to the Start Winding. This Capacitor together with the Start Windings provide an increase of 150 -175 % of torque to the motor shaft during its initial startup. When the motor reaches 2/3 to 3/4 full speed, this circuit will be shut off. The start capacitor will generally be rated at 50-400 MFD and 125 or 250 VAC.

Step 4

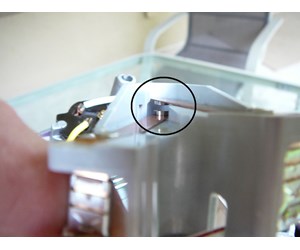

SWITCH - The Start Switch is commonly shaped as a V with contacts at the point of the V. When the contacts are pushed together by the Governor, the start circuit is activated. This picture shows the contact points of the switch.

Step 5

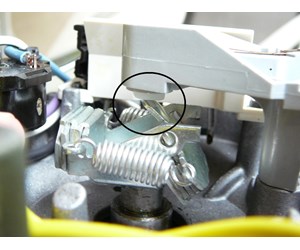

GOVERNOR (1) - The governor controls the opening and closing of the start switch. When the motor is off, springs on the arm of the governor cause the arm to come in contact with the bottom of the start switch causing the two contact points on the switch to come together and close the start winding circuit. When the motor is turned on, the rotational force off the shaft causes the weights on the ends of the governor to spin out. When that rotational force is greater than the force of the springs, the arm on the governor drops down and the contacts on the switch separate and opens the start winding circuit. This picture shows the arm of the Governor engaged with the push rod of the Switch.

Step 6

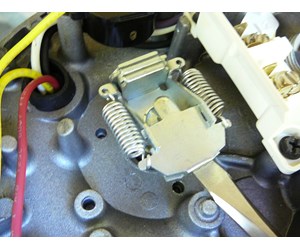

GOVERNOR (2) - This picture shows the down position of the Governor's arm as it would appear in rotation. Note: a screwdriver is holding the arm down to simulate rotation. Also the Switch has been removed to better illustrate the Governor.

Step 7

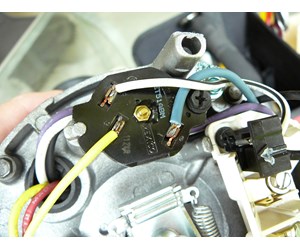

PROTECTOR - The Thermal Overload Protector helps keep the motor from overheating. When the motor amperage exceeds max amps, the motor will overheat, and the Overload will shut the motor off until it cools. If the motor keeps cycling on and off, you either have a defective Overload or some other problem with the motor.

Step 8

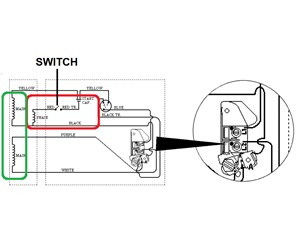

WINDINGS - Windings are the wire wrapping inside the motor. In a Capacitor Start Pool Motor there are three set of windings. The main windings are broken into two circuits. They are active whenever the motor is running. The start winding is part of a third circuit that is only active at the start of the motor. This picture shows a schematic of the three winding circuits. The windings outlined in green are the main windings; the winding outlines in red is the start capacitor winding. The switch that turns the start capacitor circuit on and off is in the middle of the red box.
