How To Replace the Maytronics Dolphin Nautilus Combined Brushes

If your Maytronics Dolphin Nautilus Robotic Cleaner is not picking up the dirt and debris as effectively as it used to, it may be time to replace the Cleaner's Brushes. This cleaner has the option of using a Combined Brush with Climbing Rings incorporated into the ends of the brush to help climb the wall. If your Cleaner is not climbing the walls, it may be time to replace these rings with the brushes. This guide shows you how to replace the Nautilus Brushes and Climbing Rings.

Step 1

Step 1 image

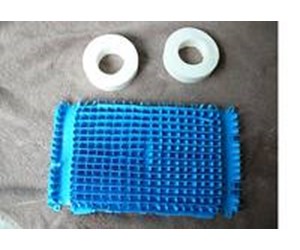

ORDER PARTS - The only parts you may be required for this procedure are two sets of Maytronics Dolphin Nautilus Combined Brushes. This picture shows the pieces in one set of Combined Brushes.

Step 2

Step 2 image

REMOVE TRACKS - In order to remove the Combined Brushes, you will first have to remove the Cleaner's Tracks that are attached to the ends of each Brush. To remove these Tracks and later replace them, see our guide on "How To Replace Maytronics Dolphin Nautilus Tracks".

Step 3

Step 3 image

SNAP OUT BRUSH ROLLER END - The Rollers are attached to the Cleaner with two slots in the frame of the Cleaner - one on each end of each roller. Pull one end of the Roller out of its slot. It will snap out.

Step 4

Step 4 image

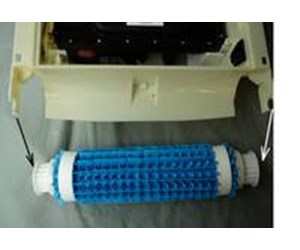

LIFT OUT BRUSH ROLLER - Pull the other end of the Roller out of its slot and lift the Roller out of the Cleaner.

Step 5

Step 5 image

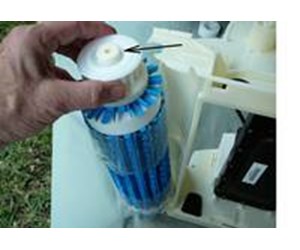

REMOVE ROLLER CAP - The Roller has a center tube. Using a flat screwdriver pry the small cap off one end of the Roller Tube.

Step 6

Step 6 image

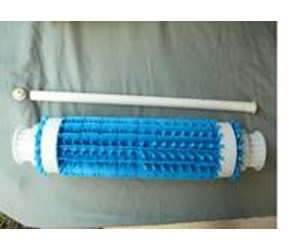

REMOVE ROLLER TUBE - Pull the Roller Tube out of the Roller from the other end of the Roller

Step 7

Step 7 image

REMOVE GEAR CAPS - Pry the Gear Caps off of each end of the Roller.

Step 8

Step 8 image

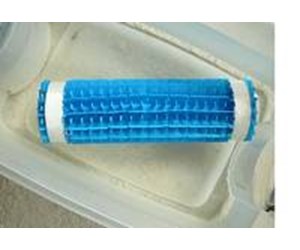

SOAK BRUSHES - If the Cleaner hasn't been used for a while, the Brushes and Climbing Rings may be dry and not pliable. Soak them in water until they are soft.

Step 9

Step 9 image

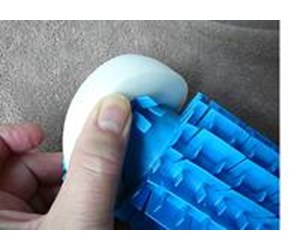

REMOVE CLIMBING RINGS - Carefully slide the Climbing Rings off the ends of each of the Rollers.

Step 10

Step 10 image

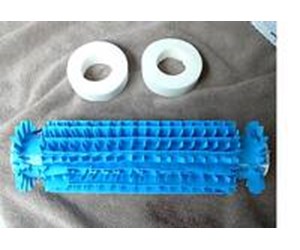

VIEW ROLLERS - This is what the Roller Brush looks like without the Climbing Rings.

Step 11

Step 11 image

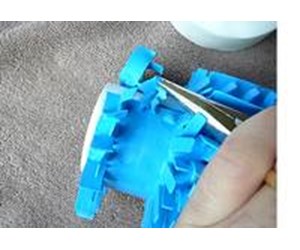

REMOVE BRUSHES - The Brushes are wrapped around the Roller and held together at the edge with tabs pulled through holes. With a pair of pliers, pull these tabs out of their holes.

Step 12

Step 12 image

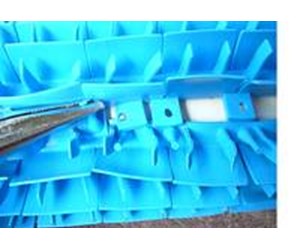

REPLACE BRUSHES - Wrap the new Brushes around the each roller and secure them by pulling the tabs through their respective holes. Don't pull too hard or you will break the tab off.

Step 13

Step 13 image

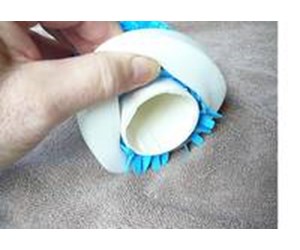

REPLACE CLIMBING RINGS - If the new Rings are hard, soak them until they are pliable. Slide a pair of rings on each end of the Rollers into the space provided.

Step 14

Step 14 image

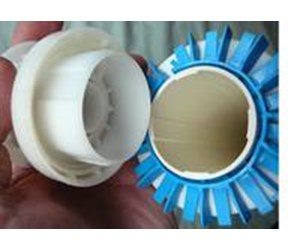

REPLACE GEAR CAPS - Push the Gear Caps on each end of the Rollers. The Gear Caps are slotted and will only fit one way. Line up the Gear Caps correctly before inserting them into the Roller.

Step 15

Step 15 image

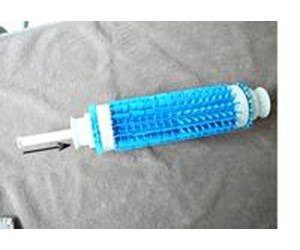

REPLACE ROLLER TUBES - Slide the Roller tubes into one end of each Roller.

Step 16

Step 16 image

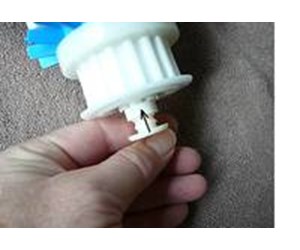

REPLACE ROLLER CAP - Push the Roller Cap into the end of each of the Roller Tubes.

Step 17

Step 17 image

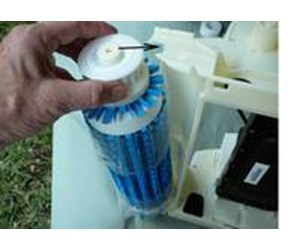

INSERT ROLLER BRUSH INTO SLOTS - Press the ends of the Roller Brush into their slots in the Cleaner frame. They should click in.

Step 18

Step 18 image

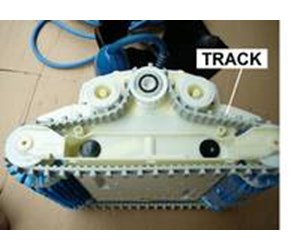

REPLACE TRACKS - The Tracks now have to be attached to the end of the Brush Rollers. See our guide on ""How To Replace Maytronics Dolphin Nautilus Tracks" for further instructions.
