How to Replace an Aquabot Rapids 4WD Scrub Brush Assembly

Things You’ll Need

• Rapids 4WD Needle (Scrub) Brush Assembly

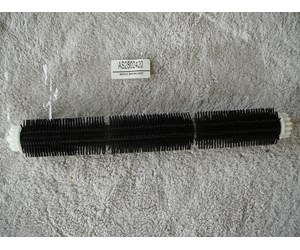

Step 1

BUY PART - Buy the replacement parts ahead of time so that they are on hand. The only part you will need for this procedure is a Needle Brush Assembly.

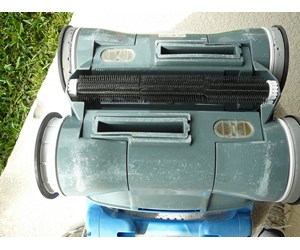

Step 2

TURN CLEANER OVER - Turn the Rapids 4WD on its back to have access to the scrub brush.

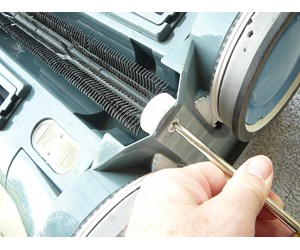

Step 3

RELEASE END OF BRUSH - The brush is held into the holes in the cleaner's frame with telescoping posts on each end of the brush. Using a small screwdriver, depress the end of one of the posts until it is freed from the hole.

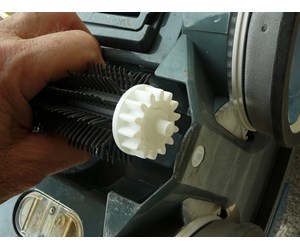

Step 4

LIFT OUT BRUSH - Lift the freed end of the brush out of the cleaner. The rest of the brush should come out easily.

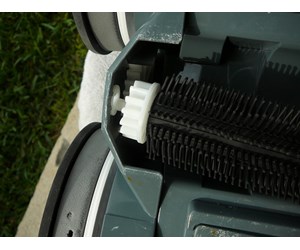

Step 5

INSTALL THE NEW BRUSH - Place the post on one end of the new brush into one of the brush holes in the frame.

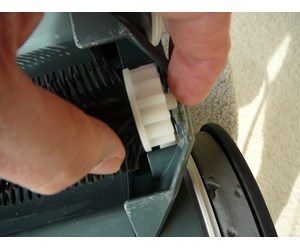

Step 6

SNAP IN OTHER END OF BRUSH - Depress the post on the other end of the brush and snap it into the other hole in the frame used to secure the brush.

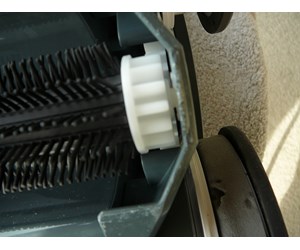

Step 7

CHECK PLACEMENT OF BRUSH - Check that the ends of the brush are securely in the frame holes and that they are fully engaged with the gears at each end of the brush.
