How to Replace an Aquabot Rapids 4WD Handle

If the handle on your Aquabot Rapids 4WD Robotic Cleaner is damaged, you can replace it by following the simple step-by-step instructions provided in this guide. Note: This guide can also be used for the Aquabot Breeze 4WD Robotic Pool Cleaner.

Things You’ll Need

Aquabot Rapids 4WD Robotic Pool Cleaner Handle

Step 1

Step 1 image

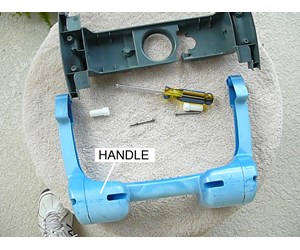

BUY PARTS - Buy all the parts you will need to have everything in place for this task. The only part required for this task is the Aquabot Rapids 4WD Robotic Pool Cleaner Handle.

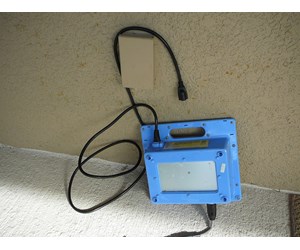

Step 2

Step 2 image

TURN OFF POWER - If the Aquabot Power Unit is connected to the wall, unplug it.

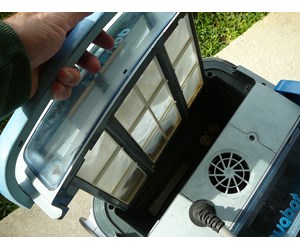

Step 3

Step 3 image

REMOVE FILTER ASSEMBLIES - Pull the two Filter Assemblies straight up and out of the cleaner.

Step 4

Step 4 image

UNSCREW OUTLET TOP - The Outlet Top over the Impeller is secured with one screw. Remove the screw.

Step 5

Step 5 image

SLIDE TOP FROM GROMMET - Lift up the screw end of the Outlet Top and slide the other end away from the Cable Grommet.

Step 6

Step 6 image

LIFT OFF TOP - Lift off the Outlet Top to expose the Impeller.

Step 7

Step 7 image

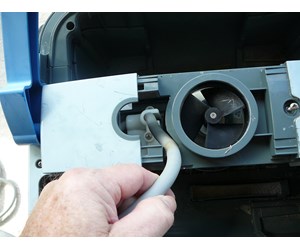

FREE CABLE FROM TOP BRIDGE - Slide the Cable Grommet up the cable to get it out of the way, then snake the cable out of the Top Bridge through the slot in the side of the Top Bridge.

Step 8

Step 8 image

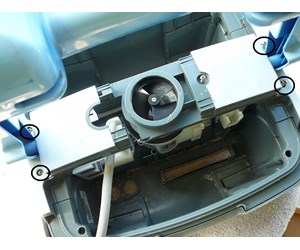

UNSCREW TOP BRIDGE - The Top Bridge is secured to the cleaner body with four screws as shown. Remove the four screws. Note: The Cleaner's Handle is attached to the Top Bridge.

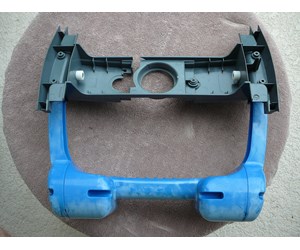

Step 9

Step 9 image

LAY TOP BRIDGE ON ITS BACK - Turn the Top Bridge (and Handle) on its back.

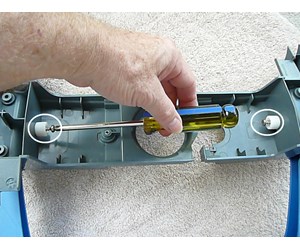

Step 10

Step 10 image

REMOVE HANDLE SCREWS - The Cleaner Handle is attached to the Top Bridge with two screws as shown. Remove the two screws.

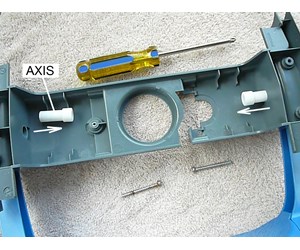

Step 11

Step 11 image

SLIDE OUT MAIN HANDLE AXES - The Cleaner Handle pivots on two Axes. Pull each Axis out of each side of the Handle and Top Bridge.

Step 12

Step 12 image

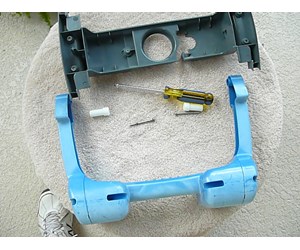

REMOVE OLD HANDLE - Separate the Cleaner Handle from the Top Bridge.

Step 13

Step 13 image

ATTACH NEW HANDLE AND INSERT AXES - Place the new Handle onto the Top Bridge and reinsert the two Axes.

Step 14

Step 14 image

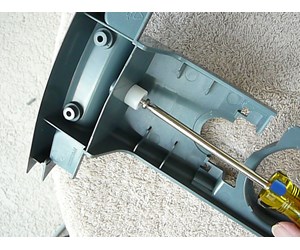

SECURE HANDLE - Secure the Handle with two screws through the Axes.

Step 15

Step 15 image

REPLACE TOP BRIDGE - Replace the Top Bridge and secure it with four screws, two on either end.

Step 16

Step 16 image

THREAD CABLE THROUGH TOP BRIDGE SLOT - Snake the cable into the Top Bridge through the slot in the side of the Top Bridge.

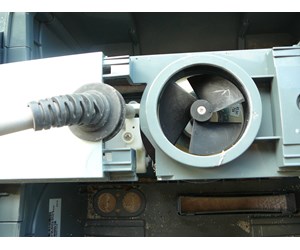

Step 17

Step 17 image

SLIDE HALF OF CABLE GROMMET INTO TOP BRIDGE - Slide half of the slotted Cable Grommet into the Top Bridge.

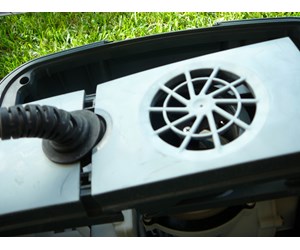

Step 18

Step 18 image

REPLACE OUTLET TOP - Slide the Outlet Top into the side of the Cable Grommet as shown. Push the Outlet Cover down so it is flush with the Top Bridge.

Step 19

Step 19 image

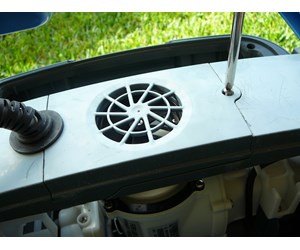

SECURE OUTLET TOP - Secure the Outlet Top with a single screw.

Step 20

Step 20 image

REPLACE FILTERS - Insert the Filter Assemblies and push them straight down into the cleaner.

Step 21

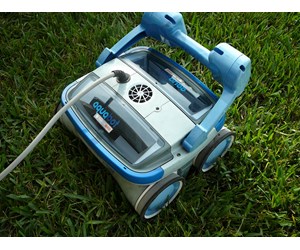

Step 21 image

READY TO GO - That's it. Your Rapids 4WD Cleaner has a new Handle and is ready to go.
