How to Replace a Smartpool NC22 Robotic Pool Cleaner Foam Ring

The Smartpool NC22 Robotic Pool Cleaner Foam Ring is positioned between the pair of Drive Brushes. The Ring provides additional traction to propel the Cleaner along the flat surfaces of the pool. When the Foam Ring wear down to the point where it has minimal contact with the pool surface, it has to be replace. This guide provides step-by-step instructions on how to replace this Foam Ring. Note: Although this guide features the NC22 model cleaner, these instructions can be used for replacing the Foam Ring on other models of Smartpool Robotic Pool Cleaners that use a Foam Ring.

Things You’ll Need

Smartpool Robotic Pool Cleaner Foam Ring

Step 1

Step 1 image

ORDER PARTS - Buy the parts you will need to have everything on hand. The only part required for this task is the Foam Ring on a Smartpool Robotic Pool Cleaner.

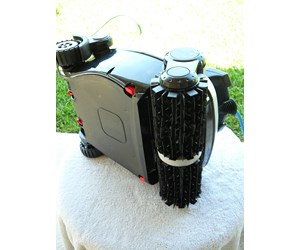

Step 2

Step 2 image

TURN CLEANER ON ITS RIGHT SIDE - To remove the Foam Ring, you will have to first remove the Drive Wheel Tube that holds the Foam Ring. Turn the Cleaner on its right side to access the left end of the Drive Wheel Tube.

Step 3

Step 3 image

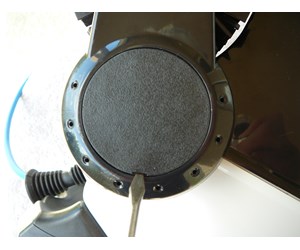

PRY OFF VINYL CAP - The left end of the Drive Wheel tube is connected to the Drive Motor Assembly which is covered with a vinyl cap. Insert the end of a small screwdriver into the slot in the vinyl cap to pry up a side of this cap.

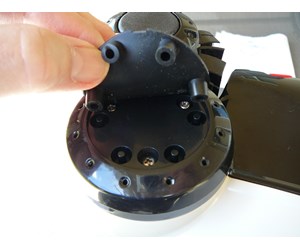

Step 4

Step 4 image

LIFT OFF VINYL CAP - Lift the vinyl cap off of the six posts holding it.

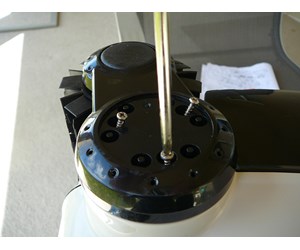

Step 5

Step 5 image

UNSCREW DRIVE MOTOR ASSEMBLY - To free the Drive Wheel Tube from its ends, you most first remove the Drive Motor Assembly. Remove the three screws that hold the Drive Motor Assembly to the frame of the Cleaner.

Step 6

Step 6 image

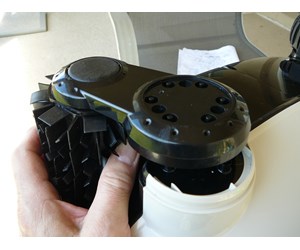

REMOVE DRIVE WHEEL TUBE - Lift the Drive Motor Assembly from the frame to release the other end of the Drive Wheel Tube.

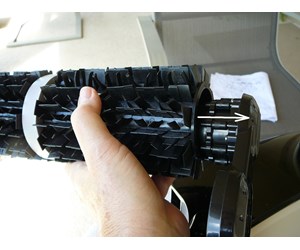

Step 7

Step 7 image

REMOVE DRIVE MOTOR ASSEMBLY - With the Drive Wheel Tube free from the Cleaner frame, remove the Drive Motor Assembly from its end of the Tube.

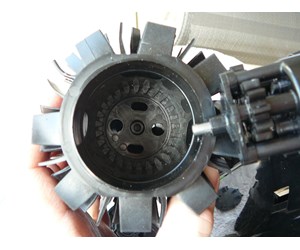

Step 8

Step 8 image

VIEW DRIVE WHEEL TUBE - This is a picture of the end of the Drive Wheel Tube after the Drive Motor Assembly has been removed. The end of the Drive Motor Assembly is on the right.

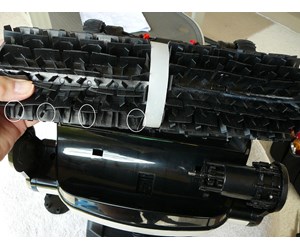

Step 9

Step 9 image

LOCATE DRIVE BRUSH TABS - To access the Foam Ring, you will have to remove one of the Drive Bushes. Rotate the Drive Wheel Tube until you can see the four tabs that hold the left Drive Brush to the Tube.

Step 10

Step 10 image

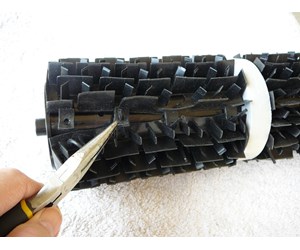

SEPARATE TABS - Put a soapy solution on each of the four tabs. Then grab each tab with a pair of pliers and pull it off the cone end its vinyl post.

Step 11

Step 11 image

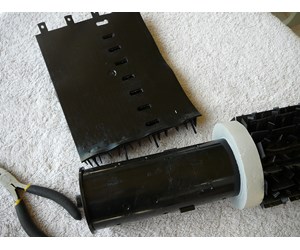

PULL OFF BRUSH - Pull the left Drive Brush away from the Drive Wheel Tube.

Step 12

Step 12 image

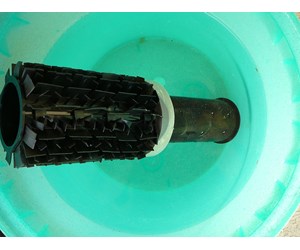

SOAK FOAM RING - You now have access to the Foam Ring, but you will have to soak it for a half hour to make it flexible enough to remove.

Step 13

Step 13 image

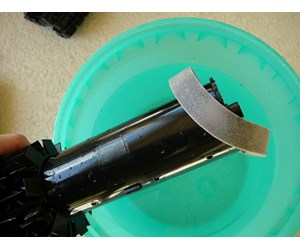

SLIP OFF FOAM RING - Once soaked, the Foam Ring will slide off the Drive Wheel Tube easily.

Step 14

Step 14 image

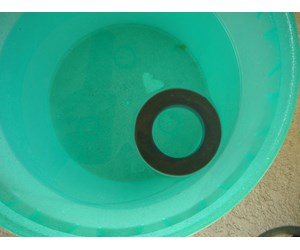

SOAK NEW FORM RING - As with the old Foam Ring, the new Foam Ring will be rigid until you soak it.

Step 15

Step 15 image

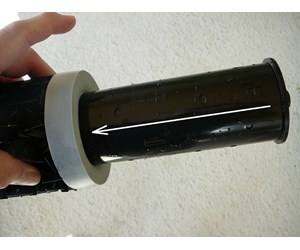

SLIP ON NEW FOAM RING - The new soaked Form Ring should slide onto the middle of the Drive Wheel Tube easily.

Step 16

Step 16 image

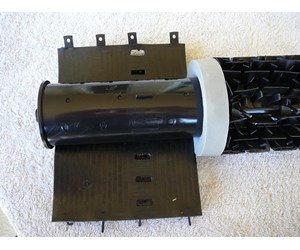

REPLACE BRUSH - Place the Drive Brush on the left side of the Drive Wheel Tube.

Step 17

Step 17 image

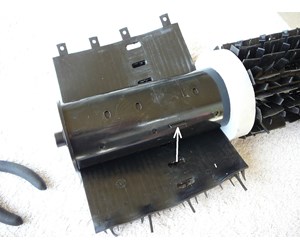

LINE UP BRUSH - Move the Drive Brush around the Tube until a slot on the Drive Brush lines up with one of the plastic tabs on the Drive Wheel Tube.

Step 18

Step 18 image

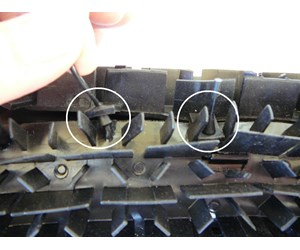

CONNECT TABS - Soap the vinyl tabs on the Drive Brush and pull each of the four vinyl posts through the connecting vinyl tab. Pull easy. If you pull the posts too hard, they may break off.

Step 19

Step 19 image

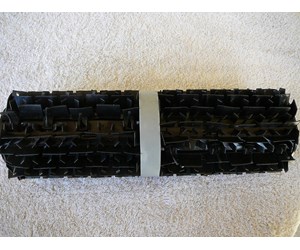

VIEW DRIVE WHEEL TUBE - This is a picture of the fully reassembled Drive Wheel Tube.

Step 20

Step 20 image

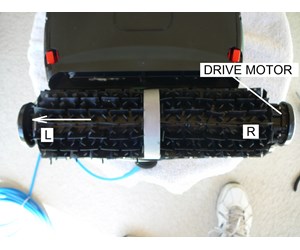

INSERT LEFT END OF DRIVE WHEEL TUBE - Insert the left end of the Drive Wheel Tube into the left hand bracket attached to the Cleaner frame. Note: Directions for left and right are relative to the Cleaner positioned on it back with the Drive Wheel Tube to the rear of the Cleaner.

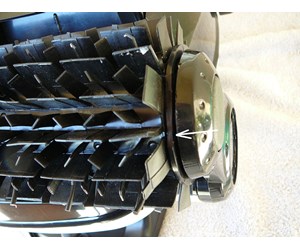

Step 21

Step 21 image

INSERT DRIVE MOTOR ASSEMBLY - On the right side of the Cleaner, insert the Drive Motor Assembly into the right side of the Drive Wheel Tube. Make sure the gears line up so you can push the Assembly all the way in.

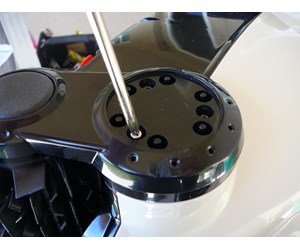

Step 22

Step 22 image

SECURE DRIVE MOTOR ASSEMBLY - Secure the Drive Motor Assembly with three screws.

Step 23

Step 23 image

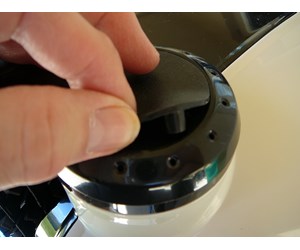

REPLACE VINYL CAP - Replace the vinyl cap on the six posts at the end of the Drive Motor Assembly.

Step 24

READY TO GO - That's it. Your Smartpool Robotic Pool Cleaner should be ready to go.
