How To Operate a Pentair Kreepy Krauly Sand Shark Through a Skimmer

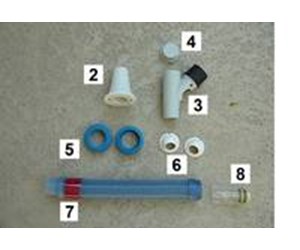

Step 1

INSPECT PARTS - This picture shows the parts you should have received to install your Pentair Kreepy Krauly Sand Shark Cleaner into your pool's dedicated suction line: 1- the Kreepy Krauly Sand Shark (not shown), 2- reducer cone, 3- regulator valve, 4- regulator valve cap (not used), , 5- two hose weights, 6- two eyeball diverters, 7- 12" leader hose, 8- flow gauge. Note: 33 feet of hose sections is not shown.

Step 2

TURN PUMP OFF - Always turn your pump off at the pump circuit breaker.

Step 3

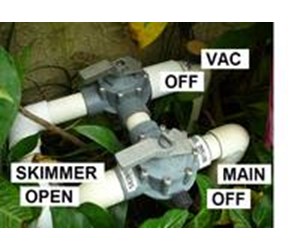

CLOSE MAIN DRAIN - For best cleaner results, shut off your main drain and any dedicated suction lines other than the skimmer.

Step 4

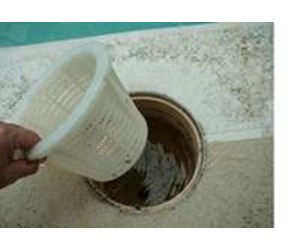

REMOVE SKIMMER BASKET - Remove the skimmer cover and lift out the skimmer basket.

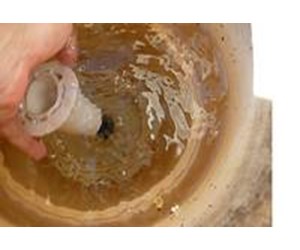

Step 5

INSET REDUCER CONE - Insert the Reducer Cone into the pipe at the bottom of the Skimmer.

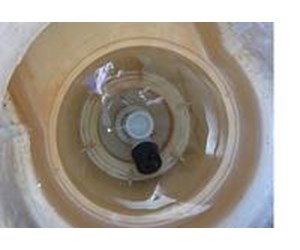

Step 6

INSET VACUUM REGULATOR - Insert the Regulator Valve into the top of the Reducer Cone. Note: the Regulator Valve Cap is not used in this installation . Do not place it on top of the Regulator Valve.

Step 7

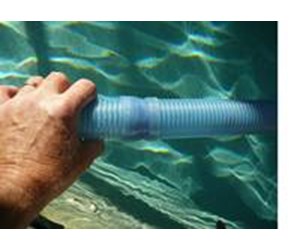

CONNECT THE HOSE SECTIONS - Dip the ends of the hoses into the pool to wet them and twist and push them together.

Step 8

EXTEND HOSE SECTIONS - Combine enough hose sections until the hose reaches from the suction port to the farthest part of your pool, plus one section. Attach the short leader hose on the furthest end where the Cleaner will be attached.

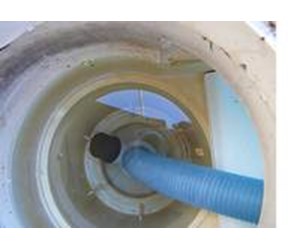

Step 9

CONNECT HOSE TO VALVE - Insert the end of the hose through the skimmer opening and connect the hose directly onto the automatic regulator valve.

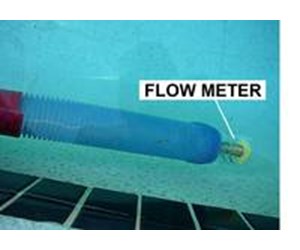

Step 10

ATTACH FLOW GAUGE - Attach the Flow Gauge on the end of the hose that will be attached to the cleaner - onto the leader hose section.

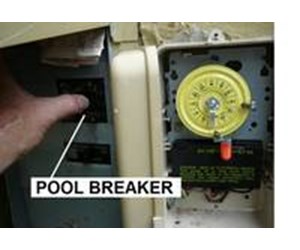

Step 11

TURN PUMP ON - With the hose and Flow Gauge under water, turn the pump on.

Step 12

ADJUST FLOW - Turn the knob on Vacuum Regulator (in the Skimmer) until the indicator in the Flow Gauge is between Minimum and Maximum flow. Note: If you cannot adjust the flow to below Maximum, you may have to open the Main Valve slightly.

Step 13

TURN PUMP OFF.

Step 14

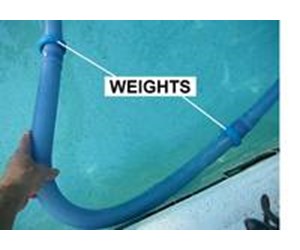

PLACE HOSE WEIGHTS ON HOSE - Weights have to be added to the hose to neutralize the Hose's buoyancy in water. Place one weight on the fourth hose 1" back from the end of the third hose. For pools deeper than 6', place the second hose weight on the fifth hose 1" from the end of the fourth hose.

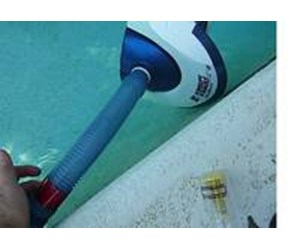

Step 15

ATTACH HOSE TO THE CLEANER - Check that the swivel head rotates freely. Then remove the Flow Gauge from the hose and attach the leader hose to the swivel head of the Cleaner.

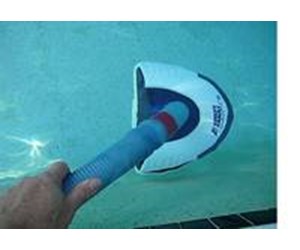

Step 16

PLACE CLEANER INTO POOL - Lower the Pentair Kreepy Krauly Cleaner and hoses into pool. Push the hose straight down to purging all air out of the cleaner and hose. Note: You will have to remove the hose temporarily out of the Skimmer to purge the air from the hose and Cleaner.

Step 17

ADJUST WEIGHTS - With the pump off observe the Sand Shark Cleaner. If it does not rest flat on the pool floor, adjust the weight{s) 1 " at a time as required to enable the cleaner to rest flat on the floor.

Step 19

TURN PUMP ON - Restart the pump by flipping the circuit breaker on. The Cleaner will begin to operate in a minute or two as soon as the pump is fully primed.

Step 20

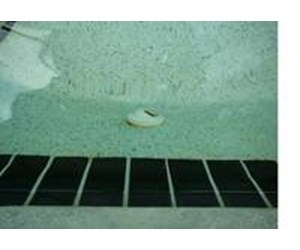

CHECK POSITION OF RETURN VALVES - The water flow from your return line may prevent your Kreepy Krauly Cleaner from cleaning a corner of your pool. If you have eyeball diverters already in your pool, position any that effect the Kreepy Krauly Cleaner to flow either along the side of the pool or downward.

Step 21

ADD EYEBALL DIVERTER (OPTION) - If you do not have existing adjustable returns, Pentair has included two in your Kreepy Krauly Cleaner package. With the PUMP OFF, unscrew the lock ring on your original return valve; replace the original eyeball with the Kreepy Krauly eyeball diverter; replace the locking ring; adjust the eyeball to divert flow; and tighten locking ring.

Step 22

Your Kreepy Krauly Sand Shark Cleaner should now be operating successfully.
