How To Replace a Jandy AquaLink RS Auxilliary Power Center Circuit Bd

The Jandy AquaLink RS Control System has multiple configurations. Most setups are limited to the standard one box AquaLink System for 8 functions. The system discussed here has two interlinked control boxes to handle up to 16 functions. The first control box is called the Primary Power Center and the second control box is called the Auxilliary Power Center. Each Power Center has its own unique Printed Circuit Board (PCB). This guide shows you how to replace a Jandy AquaLink RS AUXILLIARY Power Center Circuit board. see our guide on " How To Set Up In Ground Pool Equipment - Part 6 - Control " for examples of the types of functions that can be controlled by this system.

Things You’ll Need

AquaLink RS Auxilliary Power Center Circuit Board

Step 1

Step 1 image

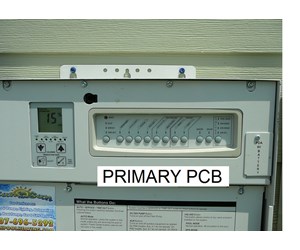

VIEW PRIMARY PCB - This picture shows the front of the Printed Circuit Board for the Primary Jandy Aqualink RS Control System.

Step 2

Step 2 image

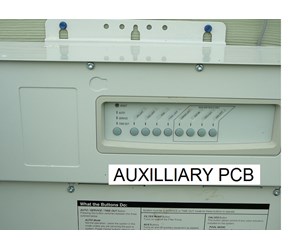

VIEW AUXILLIARY PCB - This picture shows the front of the Printed Circuit Board for the Auxilliary Jandy Aqualink RS Control System. This is the PCB that we will be replacing in this guide.

Step 3

Step 3 image

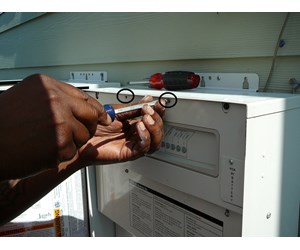

UNSCREW FRONT COVER - Release the Front Cover of the PCB by removing the two upper middle screws.

Step 4

Step 4 image

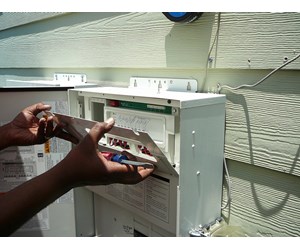

ROTATE COVER OUT - Rotate the Cover down to remove it from the Power Center Box.

Step 5

Step 5 image

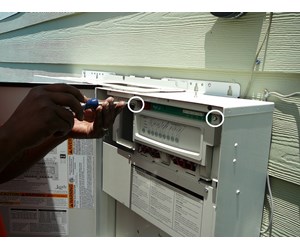

UNSCREW PCB - Release the Printer Circuit Board by removing the two top corner screws.

Step 6

Step 6 image

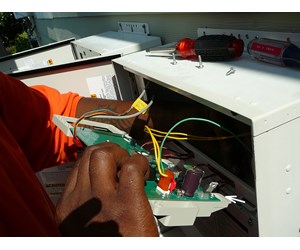

ROTATE PCB OUT - Rotate the PCB down and pull it out of its bottom slots.

Step 7

Step 7 image

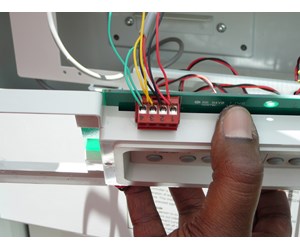

VIEW PCB - Look at the PCB. There are three sets of cables that have to be disconnected from the PCB: A 4-pin terminal, a 2 pin terminal, and a set of 8 Aux terminals on the bottom edge of the PCB (not shown).

Step 8

Step 8 image

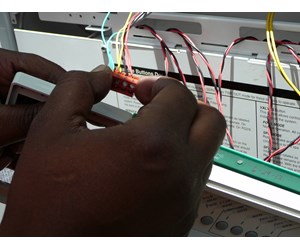

REMOVE 4-PIN TERMINAL - Pull the 4-Pin terminal off the top of the PCB.

Step 9

Step 9 image

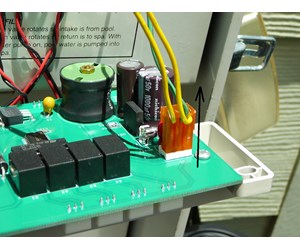

REMOVE 2-PIN TERMINAL - Pull the 2-Pin terminal off the right backside of the PCB.

Step 10

Step 10 image

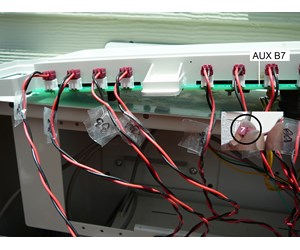

VIEW 8 AUX TERMINALS - Pull the 8 red terminals off the bottom edge of the PCB. Note , we marked these individual cables before we realized that they were already labeled. See insert on the right side of the picture. Each terminal should be labeled: with a number on the side of the terminal and a "AUX B#" notation where the terminal plugs into the PCB. In the example shown; a seven is on the terminal and "AUX B7" is along side the base.

Step 11

Step 11 image

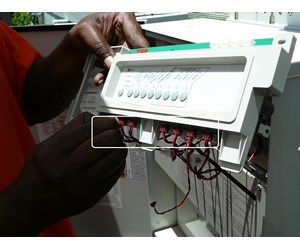

REMOVE 8 AUX TERMINALS - Pull each of the 8 terminals off the bottom of the PCB.

Step 12

Step 12 image

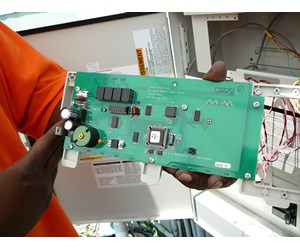

VIEW NEW DETACHED PCB - This is a picture of the new Auxilliary Power Center PCB before any cables are attached.

Step 13

Step 13 image

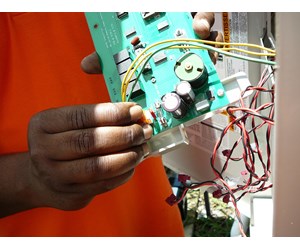

ATTACH 2-PIN TERMINAL - Push the 2-Pin Terminal onto the PCB.

Step 14

Step 14 image

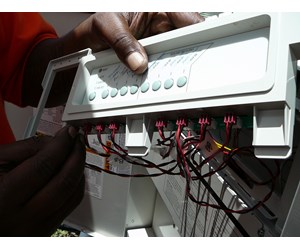

ATTACH 8 AUX TERMINALS - Push each of the 8 red terminals onto their respective bases. Make sure the labeled numbers match up.

Step 15

Step 15 image

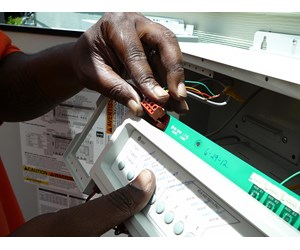

ATTACH 4-PIN TERMINAL - Push the 4-Pin terminal on the top left edge of the PCB.

Step 16

Step 16 image

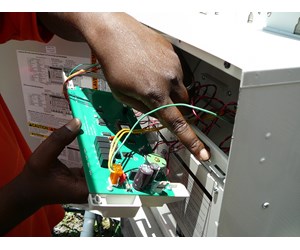

PLACE PCB IN SLOT - Place the tabs on the bottom of the PCB into the slots as indicated and rotate the PCB up.

Step 17

Step 17 image

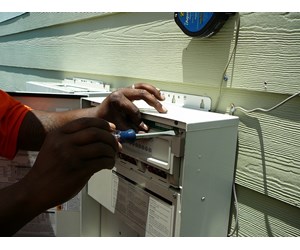

SECURE PCB - Secure the PCB to the Control Center Frame with the two corner screws.

Step 18

Step 18 image

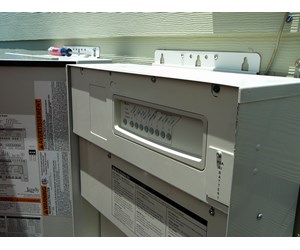

REPLACE FRONT COVER - Slide the bottom edge of the Front Cover over the bottom edge of the PCB, rotate it up and secure the Cover with two screws.
