How to Identify and Find Above Ground Pool Parts

Step 1

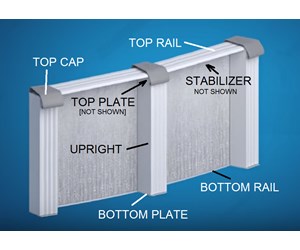

Above Ground Pool Part Overview - Here's an overview of the available parts for a typical above ground pool. Each of these parts is explained in more detail below. These parts can be made in steel, aluminum, rubber, or resin depending on cost and function.

Step 2

Top Caps - The purpose of the Top Caps or Top Covers is to cover up the intersections of the Top Rails, Top Plates, and Uprights. Some of these Top Caps are sold in two pieces.

Related Articles - How to Find Top Caps for Above Ground Pools

Click Here to Find Your Above Ground Pool Parts

Step 3

Top Rails - The Top Rail is sold in from 5" to 9" widths depending on the design of the pool. The purpose of the Top Rail is to maintain the spacing of the Uprights and to keep the Uprights vertical.

Related Articles - How to Find Top Rails for Above Ground Pools

Step 4

Top Plates - The Top Plates sit on top of the Uprights and are used to secure each set of Top Rails, Uprights, and Stabilizers

Related Articles - How to Find Top & Bottom Plates for Above Ground Pools

Click Here to Find Your Above Ground Pool Parts

Step 5

Stabilizers - The Stabilizers are located under the Top Rails and are mounted on the top edge of the Pool Wall. They support the Pool Wall and help provide vertical stability.

Related Articles - How to Find Top & Bottom Rims for Above Ground Pools

Step 6

Uprights - The Uprights support the Pool Wall and provide vertical stability between the top rim and bottom rim of the Pool Wall.

Related Articles - How to Find Uprights for Above Ground Pools

Step 7

Bottom Plates - The Bottom Plates serve as the base for the Uprights and secure the Bottom Rails to the Uprights. If these are metal, they are generally the first parts to rust and need replacement.

Related Articles - How to Find Top & Bottom Plates for Above Ground Pools

Click Here to Find Your Above Ground Pool Parts

Step 8

Bottom Rails - The Bottom Rails or Bottom Tracks provide the track for the bottom edge of the Pool Wall to set in. Like the Bottom Plates. these parts, if made of metal, are the first to rust and need replacement.

Related Articles - How to Find Top & Bottom Rims for Above Ground Pools

Step 9

Identifying Part Number - The previous section identified the common pool parts and discussed their functions. Now we will show you how to find the part numbers of these pieces so you can order them. There are four methods.

Step 10

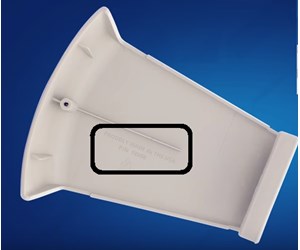

1 - Find Part Number on Part- The first and easiest method is to locate the part number on the piece you need. This part number is often printed on or stamped into the underside of the part.

Click Here to Find Your Above Ground Pool Parts

Step 11

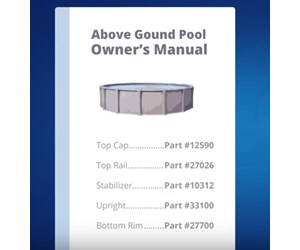

2 - Locate Part in Owner’s Manual - The second method is to locate your owners manual and search for the list of part numbers for your pool.

Step 12

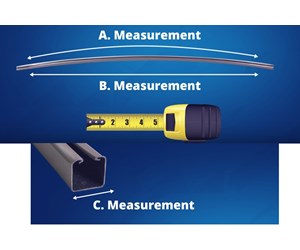

3 - Measure Part - The third method is to find the part through measurements. This is most effective for the Stabilizers, the Top Rails, and the Bottom Rails. For the Stabilizers and Bottom Rails, measure the outside curved length, the inside straight length and the width of the end. Then reference our page for the Above Ground Pool Bottom Rails and Stabilizers. The list of parts is sorted from shortest to longest.

Step 13

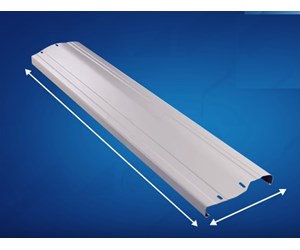

3 - Measure Part (Cont’d) - For the Top Rails, measure their length and width. Then reference our page for the Above Ground Pool Top Rails. The list of parts is sorted from shortest to longest.

Click Here to Find Your Above Ground Pool Parts

Step 14

4 - Contact Inyo’s Parts Department - If the previous steps provided no matches, reach out to Inyo’s above ground pool parts specialists. Our parts team can try to identify the make and model of your pool and its replacement parts.

If you would like us to ID the pool. Please email the following pictures/information to (agparts@inyopools.com):

• Pool wall
• Upright
• Top rail connection to the upright
• Including, the size & approximate age of the pool with the name of the pool (if known).
